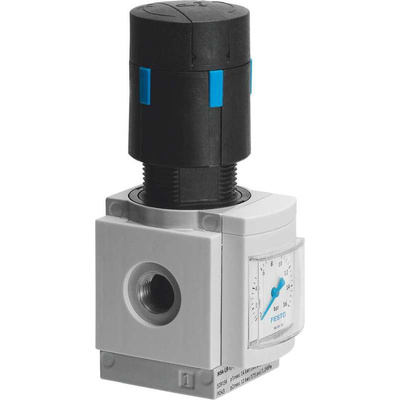

MS4-LRB-1/4-D6-AS, Festo G 1/4 Pneumatic Regulator - 0.3bar to 7bar, 14bar max. input, 529479, Регулятор

Festo Pneumatic Regulator, 0.3 to 7 Bar Pressure Regulation Range, 0.25 Bar Maximum Pressure Hysteresis - MS4-LRB-1/4-D6-AS

With this regulator from Festo on your team, it's easy to take control of the compressed air supply to your pneumatic system. It has a directly controlled diaphragm that keeps the supply pressure to your downstream equipment steady. This prevents overpressure or underpressure that could cause appliance failure and inefficiency. Thanks to its die-cast aluminium housing, this piece of kit handles corrosion and impact without breaking a sweat. As it weighs just 222g, it's easy to handle during installation.

Features & Benefits

• Pressure regulation range between 0.3 and 7 bar makes it the right choice for light-duty and medium-duty applications
• Integrated analogue pressure gauge for quick and easy monitoring
• Rotary actuator knob makes it a breeze to adjust the pressure set point
• NBR seals prevent leakages and block out contaminants for optimal performance
• Flow rate of 1,700L/min so it handles demanding tasks

Applications

• Medical equipment
• Construction industry
• Aerospace technology

What tools do I need to install this regulator?

As it has G1/4 threaded ports, all you need to install this unit is an adjustable wrench. You can also use some thread tape to ensure an airtight seal.

Datasheet - MS4-LRB-1/4-D6-AS

Brochure - Simply Part of the Solution

Instruction Sheet - MS4/6-LFR/LR(B)/LF(M)/LFX/LWS Series
