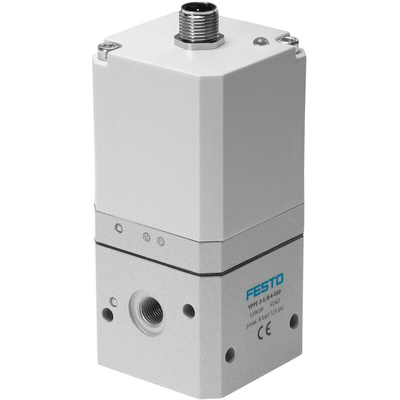

VPPE-3-1/8-6-010, Festo G 1/8 Pneumatic Regulator - 0.15bar to 6bar, 1/8 in, 8bar max. input, 539639

Festo Pneumatic Regulator, G 1/8, 850L/Min Typical Flow Rate - VPPE-3-1/8-6-010

Looking for a reliable pneumatic regulator to carry out simple control tasks? Choose this proportional pressure regulator from Festo's VPP series. It's an electrically actuated three-way valve function regulator that's suitable for block mounting, which helps you build a stable and secure system. You can use it with inlet pressures of up to 8 bar and outlet pressures between 0.15 bar and 6 bar. It has a reliable typical flow rate of 850L/min and is fitted with a standard G 1/8 port connection.

• IP65 (ingress protection) rating means it's protected from condensation and water sprays from any direction
• Compact design makes efficient use of space in your installation
• Wrought-aluminium construction makes it strong and corrosion-resistant
• Nitrile rubber seals guard against leakage

Applications

• Medical product coating
• Mould water cooling
• Thermoforming

What is proportional pressure control?

Proportional pressure control is where a variable electronic signal is used to command a pneumatic pressure control device and create a varying pressure flow.

What process variables can be controlled with a proportional pressure regulator?

Proportional pressure regulators can be used to control variables including rotational speed, position, temperature and level.

Datasheet - VPPE-3-1/8-6-010

Catalogue - VPPE-3-1/8-6-010

Instruction Sheet - VPPE-3-1/8-6-010
