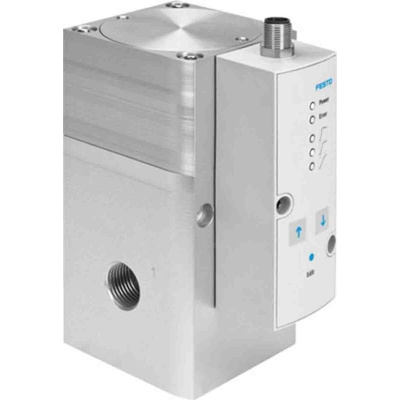

VPPM-12L-L-1-G12-0L6H-A4P-S1, Festo G 1/2 Pneumatic Regulator - 0.06bar to 6bar, 1/2 in, 8bar max. input, 575242

Festo Pneumatic Regulator, G1/2 Port Connection, 4,500L/min Flow Rate - VPPM-12L-L-1-G12-0L6H-A4P-S1

Need a safe way to control the flow of air in your pneumatic system? Turn to this pneumatic regulator from Festo. It works by shutting off the supply of compressed air or inert gas when it reaches a set pressure level. This helps maintain stable air pressure while reducing waste. A maximum flow rate of 4500L/min means you can safely use this component in high-flow systems. It has a broad pressure regulation range between 0.06 and 6 bar making it a versatile choice.

• LED signals for monitoring operating status
• IP65 rating indicates it's protected against dust and low-pressure water jets
• Ambient operating temperature range between 0°C and +60°C to withstand demanding environments
• Wrought aluminium alloy housing for impact resistance

Applications

• Gas plants
• HVAC systems
• Air compressors
• Medical and dental equipment

How reliable is this regulator?

This pneumatic regulator has a low linearity error rating of 1%, so you can be confident of its accuracy.

How do I reset this regulator?

This regulator comes with a mechanical spring to return it to its original state, eliminating the need for a manual reset.

Datasheet - VPPM-12L-L-1-G12-0L6H-A4P-S1

Catalogue - Proportional Pressure Regulators VPPM

Instruction Sheet - VPPM-12L-L-1-G12-0L6H-A4P-S1
