MS4-LRB-1/4-D5-AS-BD, Festo G 1/4 Pneumatic Regulator - 0.3bar to 4bar, 14bar max. input, 529474

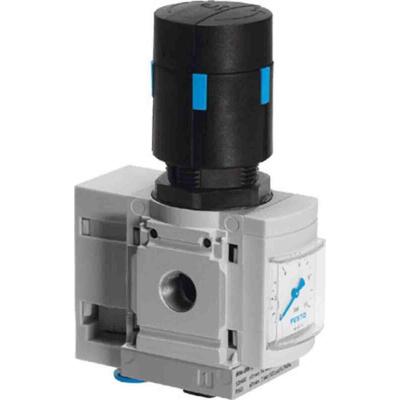

Festo Pneumatic Regulator, Rotary Knob, Integral Pressure Gauge - MS4-LRB-1/4-D5-AS-BD

When your pneumatic system is under stress, use this pneumatic regulator from Festo to manage your output. It takes input pressures as high as 14 bar and reduces them to work with your devices. A regulation range between 0.3 and 4 bar lets you fine-tune conditions to suit sensitive applications. Thanks to the directly-controlled diaphragm, you can expect no more than a 0.25 bar pressure hysteresis for accurate adjustments. This pneumatic regulator combines simply with other MS series devices including filters, valves and sensors, allowing you to build your own custom air supply system from scratch.

Features & Benefits

• Lock on the knob prevents accidental turning or movement from vibrations
• Die-cast aluminium body and nitrile rubber seals for durability
• Wide operating temperature range between -10°C and +60°C for use in challenging conditions
• Manifold mounting for easy and versatile assembly

Applications

• Machine tools
• Packaging systems
• Food processing
• Pumps and driers

What's the operating pressure range of this pneumatic regulator?

The unit's suited to both low-pressure and high-power systems, thanks to an operating pressure range between 0.8 and 14 bar.

Datasheet - MS4-LRB-1/4-D5-AS-BD

Catalogue - Pressure Regulators

Manual - Simply Part Of The Solution

Brochure - Pneumatic Drives
