VPPE-3-1-1/8-6-420-E1, Festo G 1/8 Pneumatic Regulator - 0.06bar to 6bar, 8bar max. input, 557775

Festo G 1/8 Pneumatic Regulator, 0.06 to 6 Bar - VPPE Series - VPPE-3-1-1/8-6-420-E1

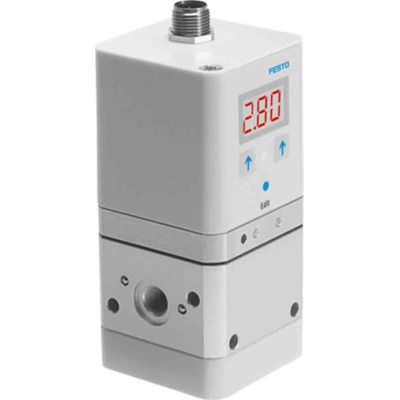

Turn to this proportional pneumatic control valve from Festo for precise control of air in variable pressure and flow systems. It's pilot actuated, so it's a good option for simple tasks like leak testing. An LED display on this unit makes it easy to operate. Thanks to its wrought aluminium alloy construction, it's durable and offers good corrosion resistance. Soft-sealing nitrile butadiene rubber (NBR) seals keep contaminants out and prevent leaks. The regulator is IP65 rated for ingress protection, so it's dust-tight and withstands water jets. This means it's a reliable choice in harsh industrial settings.

• Maximum input pressure of 8 bar
• Minimum outlet pressure of 0.06 bar
• Maximum outlet pressure of 6 bar
• G 1/8 port connection
• Typical flow rate of 800 l/min
• Nominal pressurisation diameter of 5 mm
• Nominal exhaust diameter of 2.5 mm
• Mechanical spring reset
• Operating voltage range of 21.6 V to 26.4 V DC

Range Information

• The VPPE series is Festo's range of compact and reliable proportional pressure control valves for simplifying industrial automation
• Units available with or without LED display
• Moderate corrosion resistance of class CRC 2 to Festo standard FN 940070 makes these components suitable for indoor applications where condensation may occur
• Available with a range of accessories

The Festo VPPE Proportional pressure regulator is a 3-way valve function regulator with segment LED display. The pressure range is up to 6 bar with analogue set point of 4 to 20mA.

Pressurisation - 5 mm,
Nominal diameter, exhaust - 2.5 mm
Assembly position - any (preferably upright)
