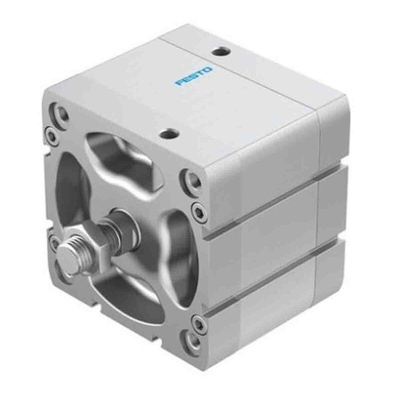

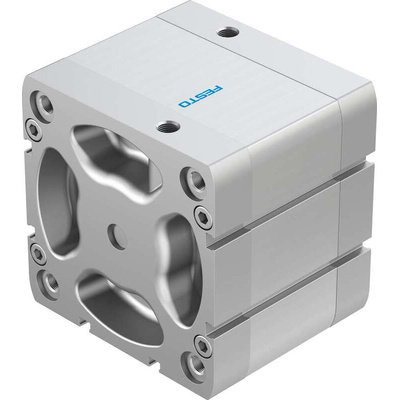

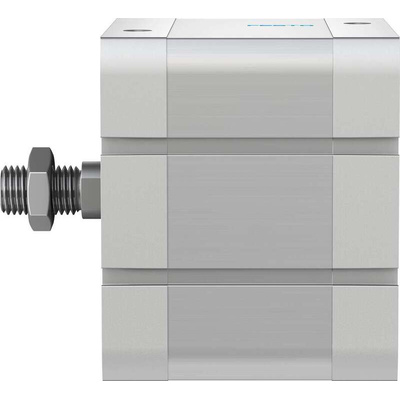

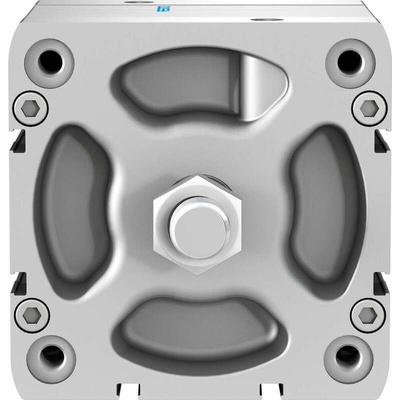

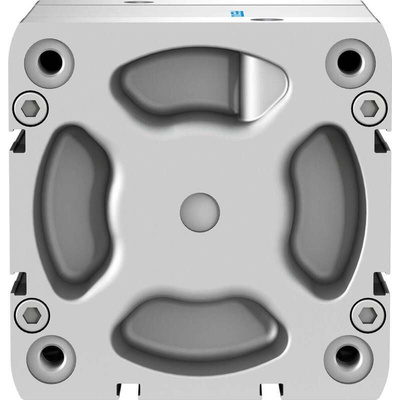

ADN-100-30-A-P-A, Festo Pneumatic Compact Cylinder - 536378, 100mm Bore, 30mm Stroke, ADN Series, Double Acting

Festo Pneumatic Compact Cylinder, G1/8 Connection, 0.6 to 10 Bar Operating Pressure - ADN-100-30-A-P-A

Want to move machine components in a linear direction? Turn to this pneumatic compact cylinder from Festo. It's double-acting, which means it has two openings that let compressed air flow in and out. This drives the piston rod back and forth so there's no need for a spring reset. Impacts, noise and vibrations are kept to a minimum by flexible cushioning rings on both ends that soften the rod's blows. An operating pressure range between 0.6 and 10 bar makes this a reliable option in your low-pressure environment.

Features & Benefits

• Lubricated operation possible for reduced risk of friction
• Ambient operating temperature range between -20°C and +80°C to withstand tough settings
• Aluminium die-cast cover offers resistance to corrosion

Applications

• Water treatment facilities
• Hydraulic equipment
• Oil and gas industry

How do I set this cylinder up?

You set this cylinder up by inserting its G1/8 pneumatic connection into a compatible port or hose. This connection has a threaded design so you won't need any special tools to tighten it. For flexibility in your setup, you can assemble the unit in any position.

Datasheet - ADN-100-30-A-P-A
