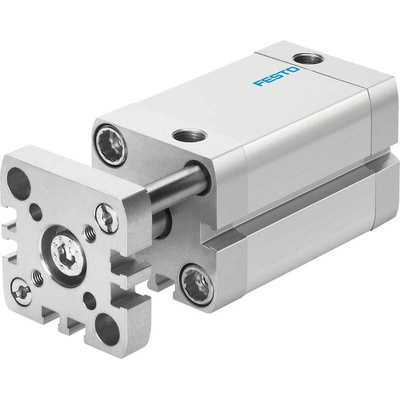

ADNGF-12-10-P-A, Festo Pneumatic Compact Cylinder - 554206, 12mm Bore, 10mm Stroke, ADNGF Series, Double Acting

Festo Pneumatic Compact Cylinder, 12mm Bore, 10mm Stroke - ADNGF-12-10-P-A

Use this pneumatic cylinder from Festo for pushing and lifting operations in industrial environments. It's a double-acting cylinder, which means that forward and reverse movements are manipulated by controlling the port on the end that receives the higher air pressure. This cylinder's piston is made of durable high-alloy steel, so it won't deform as a result of constant motion. It has a compact 10mm stroke to make it a space-saving solution in tight enclosures. This short stroke distance is practical for various clamping and lifting operations.

• Thermoplastic polyurethane (TPU) seal to prevent air leakages and optimise performance
• Flexible cushioning rings at both ends to prevent noise and vibration
• Wide operating temperature range of -20°C to +80°C for use in harsh environments
• Compatible with proximity sensors for precise automated operation
• Maximum operating pressure of 10 bar for heavy-duty applications

Applications

• Process control systems
• Assembly lines
• Drinks production

Why does this cylinder come with cushioning rings at both ends?

Cushioning prevents damage to the cylinder from the moving force of the piston. It absorbs the shock that would result from the full inertia of the piston.

Datasheet - ADNGF-12-10-P-A

Catalogue - Compact cylinders ADNGF, Standard Hole Pattern
