ADNGF-32-80-P-A, Festo Pneumatic Compact Cylinder - 554247, 32mm Bore, 80mm Stroke, ADNGF Series, Double Acting

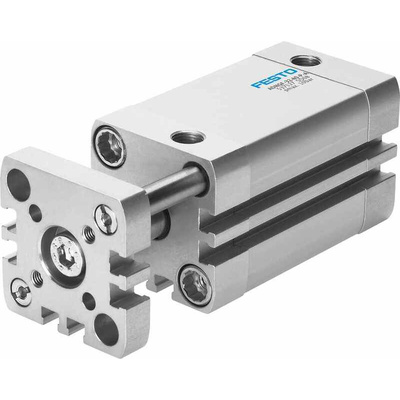

Festo Compact Pneumatic Cylinder, 32mm Bore, 80mm Stroke - ADNGF-32-80-P-A

When you have limited space for your automated systems, turn to this compact pneumatic cylinder from Festo. It's a double-action cylinder with an 80mm stroke to convert compressed air into force in both extending and retracting directions. It features a magnetic piston for better placement sensing, while guide rods and a yoke plate prevent the high-alloy steel piston rod from rotating out of position. This light, one-piece unit uses small, efficient movements to deliver high-quality performance.

• Wide ambient temperature of -20˚C to +80˚C for use in challenging environments
• Flexible cushioning plates at both ends help prevent damage from external blows
• Reduced housing length conserves materials and makes for a lighter component
• Cylinder casing built from robust anodised wrought-aluminium alloy

Applications

• Automotive manufacturing
• Food and beverage industries
• Robotics

What advantages do double-action cylinders offer?

A double-action pneumatic cylinder has two ports for compressed air to enter the cylinder. In contrast, a single-action cylinder has only one port. By doubling the number of ports through which compressed air can enter, greater efficiencies and controls are achieved.
