EZH-5/20-25-B, Festo Pneumatic Compact Cylinder - 164993, 12mm Bore, 25mm Stroke, EZH Series, Single Acting

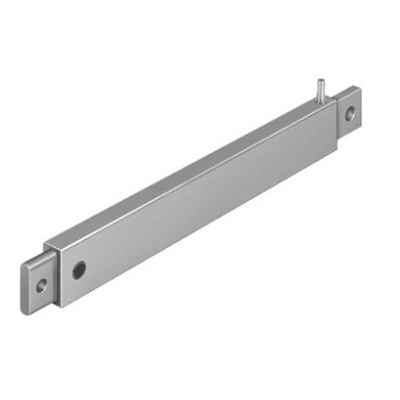

Festo Single-Acting Pneumatic Compact Cylinder, 12mm Bore, 25mm Stroke - EZH-5/20-25-B

Use this compact pneumatic cylinder from Festo to aid and operate your automation system. It's a single-acting piston-rod type, which directly fills the cylinder with compressed air in one stroke. The flat cylinder houses a square piston rod with a bore size of 12mm and a stroke of 25mm. The piston returns quickly to its base state thanks to a spring return mechanism. This space-efficient component is typically used to help position and place materials in manufacturing facilities.

• Light weight of 108g makes it ideal for compact systems
• Ambient operating temperature between 0°C and +60°C for use in a wide array of environments
• Aluminium cover is rust-resistant and corrosion-resistant for a longer lifetime
• Lateral hole mounting for tool-free installation

Applications

• Industrial cylinders
• Packaging equipment
• Printing presses

How does the spring force work in this compact pneumatic cylinder?

The spring force causes the piston to retract once the compressed air supply has shut off. It's conveniently located in between the piston and the cylinder. The maximum return force of 10.6N (newtons) ensures there's enough pressure for a smooth return.
