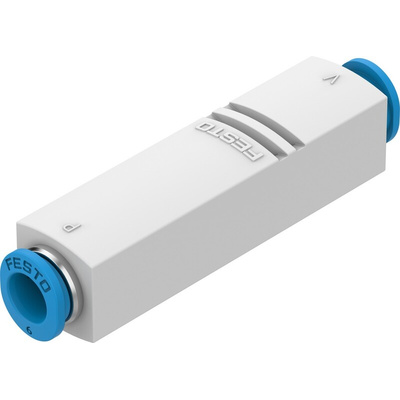

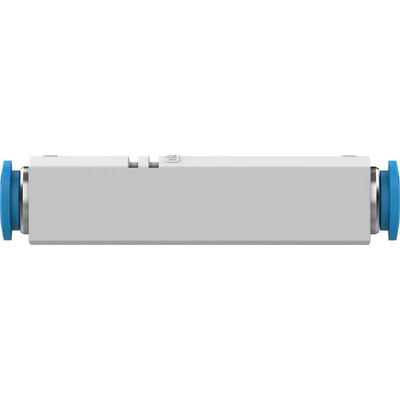

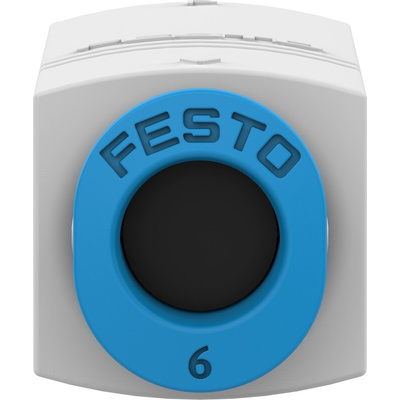

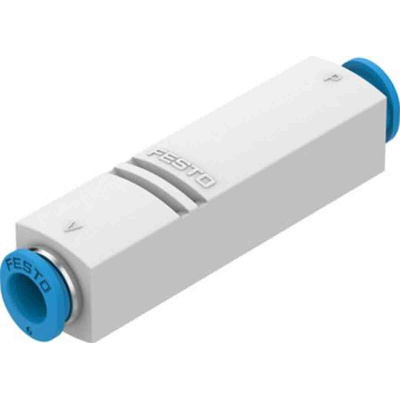

VN-07-M-I3-PQ2-VQ2, Festo Vacuum Pump, 0.7mm nozzle , 5.8bar 13.5L/min, VN series

Festo Vacuum Pump, 1 to 8 Bar Operating Pressure, Straight Body - VN-07-M-I3-PQ2-VQ2

Use this vacuum pump from Festo to compress air and create a partial vacuum inside a chamber. It helps with lifting, clamping or handling workpieces in automated industrial environments. A rapid maximum suction rate of 13.5L/min makes the unit fast-acting and boosts productivity. A POM thermoplastic housing resists wear in the long term and maintains its dimensional stability at high pressures. For minimal interruption to your workflow, you can install this vacuum pump in line. A broad temperature range between 0°C and +60°C makes this a useful option in harsh settings.

Features & Benefits

• Recyclable, as it's free of copper and PTFE
• Light weight of 16g adds minimal dragging strain on your compressed air network
• Can be assembled in any position to best suit your application's needs
• Wide operating pressure range between 1 and 8 bar, for compatibility with demanding pneumatic systems

Applications

• Air conditioning units
• Flight instruments
• Semi-conductor processing
• Medical and pharmaceutical industries

What type of seals does this vacuum pump have?

This unit has durable nitrile rubber seals that withstand the force of high pressure with little risk of tearing.

Datasheet - VN-07-M-I3-PQ2-VQ2

Brochure - Front-End Unit

Catalogue - Vacuum Generators
