VN-30-L-T6-PI5-VI6-RO2, Festo Vacuum Pump, 3mm nozzle , -0.93bar 339L/min, VN series

Festo Vacuum Pump, 3 mm Nozzle, 339 L/Min - VN series - VN-30-L-T6-PI5-VI6-RO2

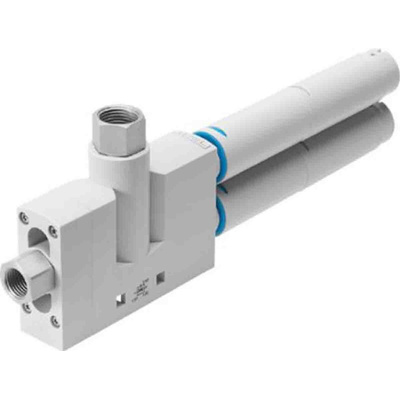

This compact vacuum generator from Festo combines simplicity and innovative technology to provide efficient suction. It's suited for use in a variety of automated factory and industrial settings. Thanks to the integrated open silencer, you can be sure of low noise operation. It's also compatible with a wide range of accessories for versatile use in modular systems. The T-shaped vacuum pump offers a high suction rate, while its reinforced POM (polyoxymethylene) housing and aluminium alloy nozzle ensure high strength and resistance to wear.

• Laval nozzle size of 3 mm
• Grid dimension of 24 mm
• Operating pressure of 1 bar to 8 bar
• Nominal operating pressure of 6 bar
• Maximum suction rate of 339 l/min
• Noise level of 70 dB(A) at nominal operating pressure
• Ambient temperature range of 0°C to +60°C
• Maximum tightening torque of 0.8 Nm
• Product weight of 183 g
• Through-hole mounting type

Range Information

• The VN series is Festo's comprehensive range of generators for high vacuum levels of up to 93%
• The generators offer high suction rates, resulting in very short evacuation times
• Units are suitable for direct use in factory automation applications
• Available in straight-type or T-shape designs
• Maintenance-free operation, thanks to no wearing parts

The Festo T-shaped vacuum generator has a nozzle size of 3mm with internal thread. It has operating pressure ranges between 1 bar to 8 bar.

Grid dimension - 24 mm
Width - 24 mm
High suction flow rate

Datasheet - VN-30-L-T6-PI5-VI6-RO2
