VN-10-H-T3-PQ2-VQ2-RO1, Festo Vacuum Pump, 0.95mm nozzle , 4.5bar 25L/min, VN series

Festo Vacuum Pump, 0.95 mm Nozzle , 4.5 Bar - VN Series - VN-10-H-T3-PQ2-VQ2-RO1

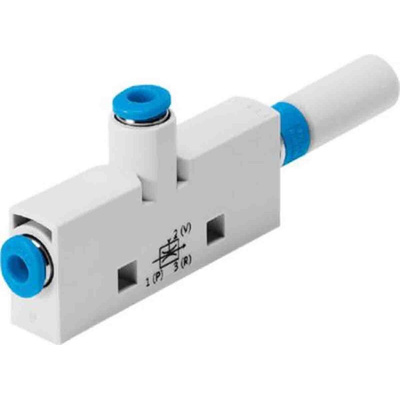

For quick and efficient suction, look to this compact vacuum pump from Festo. It comes with an integrated open silencer, so it's a quiet choice for your workplace. The pump has a compact and sturdy design and is compatible with a wide range of accessories. This makes it suitable for use in a variety of modular systems. The tough reinforced POM (polyoxymethylene) housing and aluminium alloy nozzle ensure superior durability even in harsh industrial settings.

• Laval nozzle size of 0.95 mm
• Grid dimension of 14 mm
• High vacuum ejector
• Operating pressure for maximum suction rate of 3.1 bar
• Operating pressure of 1 bar to 8 bar
• Maximum vacuum of 89%
• Suction rate of 25 l/min with
• Air supply time of 1.1 s at nominal operating pressure
• Ambient temperature range of 0°C to +60°C
• Noise level of 74 dB(A) at nominal operating pressure
• Maximum tightening torque of 0.5 Nm
• Product weight of 24 g

Range Information

• The VN series in Festo's range of highly efficient vacuum pumps
• The series' products feature suction rates of up to 93%, resulting in very short evacuation times

The Festo T-shape vacuum generator has a nozzle size of 0.95mm with plug connector. It has operating pressure ranges between 1 bar to 8 bar.

Grid dimension - 14 mm
Width - 14mm
Open silencer design
High vacuum

Datasheet - VN-10-H-T3-PQ2-VQ2-RO1

Catalogue - VN
