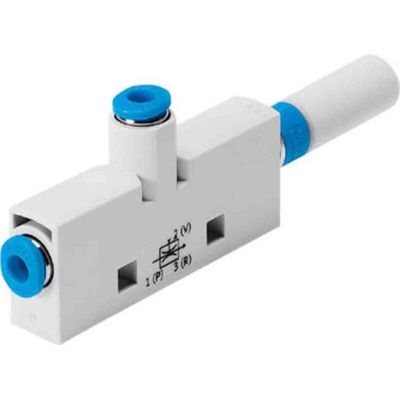

VN-07-H-T3-PQ2-VQ2-RO1, Festo Vacuum Pump, 0.7mm nozzle , 4.7bar 16L/min, VN series

Festo Vacuum Pump, 0.7mm Nozzle Diameter, 1 to 8 Bar Operating Pressure - VN-07-H-T3-PQ2-VQ2-RO1

This vacuum pump from Festo draws air molecules from a sealed chamber, enabling fluid to move from one place to another in your pneumatic system. It has a maximum suction flow of 16L/min, so it's suitable for use with heavy-duty equipment. The unit comes with an open silencer to muffle operational noise to a moderate level of 64dB, which is the equivalent of background noise in an office, meaning it won't disrupt your workplace. Its PE silencer is chemical-resistant, so you'll find this vacuum pump a durable option for use in demanding operations.

• Assembles in multiple positions for design flexibility
• POM-reinforced housing for impact resistance
• Operating temperature range between 0°C and +60°C for safe use in harsh environments
• Robust NBR seal helps prevent leakage
• Nickel-plated brass connecting thread for resistance to corrosion

Applications

• Process and packaging machinery
• Energy industry
• Printing presses
• HVAC systems
• Bottling plants

What's the pressure rating of this pump?

This pump has an operating pressure range between 1 and 8 bar, so you can safely use it in low-pressure pneumatic systems.

Datasheet - VN-07-H-T3-PQ2-VQ2-RO1

Catalogue - Vacuum Generators
