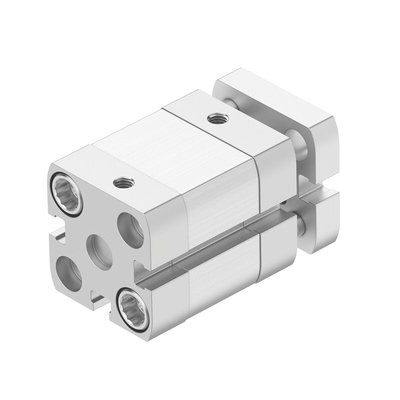

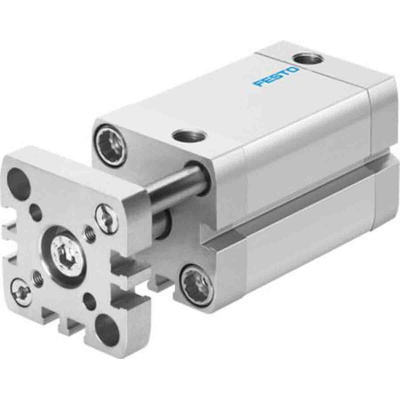

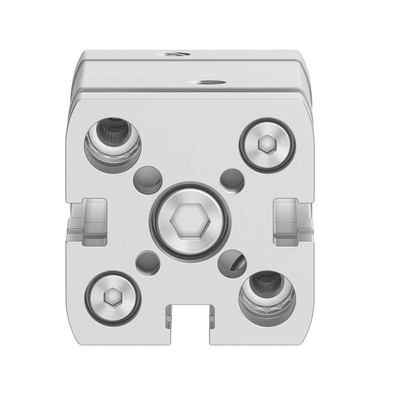

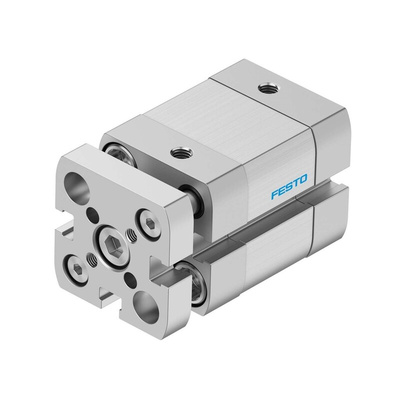

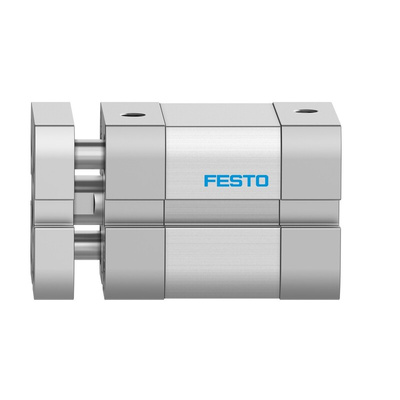

ADNGF-20-10-P-A, Festo Pneumatic Compact Cylinder - 554221, 20mm Bore, 10mm Stroke, ADNGF Series, Double Acting

2022449
Номер производителя: ADNGF-20-10-P-AПроизводитель: Festo
Цена за шт.
34417.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Festo Pneumatic Compact Cylinder, 20mm Bore, 1.5 to 10 Bar Operating Pressure - ADNGF-20-10-P-A

This pneumatic compact cylinder from Festo moves compressed air in and out of its chamber to create linear motion in a machine. It works by using the force of the air to drive the piston rod back and forth. Integrated cushioning rings on both ends minimise the impact of the piston rod's movement and prevent wear. As the unit comes with a robust TPE-U seal, it helps prevent leakage in the system. A broad operating temperature range between -20°C and +80°C means you can safely use it in challenging environments.

• Operating pressure range between 1.5 and 10 bar for use in low-pressure systems
• Lubricated operation possible for increased efficiency
• High alloy steel piston rod for corrosion resistance
• Built-in guide rod with yoke helps protect cylinder from torque

Applications

• Packaging machinery
• Conveyor systems
• Medical technology
• Aviation engineering

What's the difference between a single-acting and a double-acting pneumatic compact cylinder?

Single-acting pneumatic cylinders feature one port through which compressed air moves. They typically come with a spring mechanism that returns the rod to its original position. Double-acting cylinders, like this one, feature two ports through which the air moves in and out to control the piston rod, eliminating the need for a spring reset.

Техническая спецификация
pdfDatasheet - ADNGF-20-10-P-A
pdfCatalogue - Compact Cylinders ADNGF
pdfBrochure - Tubing And Fittings
Вес интервала хода:
26 g @ 10 mm Stroke
Давление - максимальное рабочее:
10 бар
Действие:
Double
Испытательный вес:
161 g @ 0 mm Stroke
Модель р:
554221
Отверстие:
20мм
Пневматическое соединение:
M5
Производитель - серия:
ADNGF
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-20°C
Стандарт ISO:
21287
Стандарт VDMA:
24364-B1/B2-L
Тип демпфирования:
Elastic
Ход:
10мм
