HEE-D-MINI-24, Festo 3/2 Closed, Monostable Pneumatic Manual Control Valve HEE Series, G 1/8, 1/8in, 172956

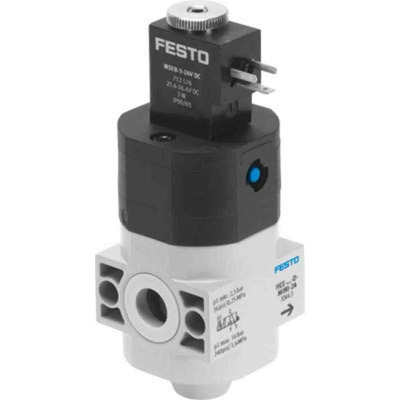

Festo 3/2 Closed, Monostable Pneumatic Manual Control Valve - HEE Series - HEE-D-MINI-24

Built for trouble-free operation over the long term, this sturdy manual control valve from Festo withstands tough industrial environments. Used for electrical remote control of pneumatic systems, the HEE on/off valve has three selectable voltage ranges and a manual override function, as well as pushing and detenting devices. The small, monostable component carries three ports and allows for ducted exhaust via a threaded connection with a silencer. Offering innovative design and efficiency, this valve forms part of Festo's modular through-bolt joining system for leak-free mounting.

• G 1/8 connection point thread
• Piston spool 3/2-way, closed valve function
• Operating temperature of -10 °C to +60 °C
• Operating pressure of 2.5 to 16 bar
• Flow rate of 1,000 l/min
• Supplied with inline installation mounting accessories, can be assembled in any position
• Solenoid coil with IP65 rating for protection against nozzle-projected dust and water

• The Festo HEE D Series provides air preparation service units to control compressed air for any application
• Units available in mini, midi or maxi sizes
• Units available with or without connecting plates
• All materials conform to RoHS (Restriction of Hazardous Substances) standards
• Units are resistant to corrosion and condensation in indoor applications (class CRC 2 to Festo standard FN 940070)
• Each unit complies with the EU Low-voltage Directive

The Festo push-in connector with tube size 8mm and used push/pull principle of structure with nominal size is 3.7mm. It used 1 - low corrosion stress.

Ambient temperature -10 to 80 °C
PBT used for housing material

Datasheet - HEE-D-MINI-24
