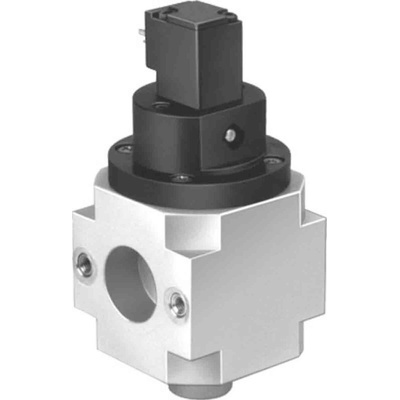

HEE-D-MIDI-24, Festo 3/2 Closed, Monostable Pneumatic Manual Control Valve HEE Series, G 1/4, 1/4in, 172959

Festo 3/2 Closed, Monostable Pneumatic Manual Control Valve - HEE Series - HEE-D-MIDI-24

This closed electrical on/off valve from Festo is used for pressuring and venting pneumatic installations. The robust 3/2-way valve provides long-lasting support in applications with standard compressed-air requirements. Manufactured from corrosion-resistant metal, it can function reliably in even the toughest industrial environments. The monostable valve aids accurate and leak-free alignment in air-preparation units. As part of Festo's D Series modular joining system, it provides maximum efficiency and reliability in automation situations.

• HEE Series with G 1/4 connection point thread
• Operating pressure range of 2.5 to 16 bar
• Operating temperature range of -10 °C to 60 °C
• Flow rate of 1,000 to 6,500 l/min
• Three voltage ranges
• Optional mounting positions
• Adjustable solenoid head
• Detecting manual override
• Plug to EN 175301-803 (solenoid valve connector), type-C electrical connection
• RoHS (Restriction of Hazardous Substances) compliant

• D Series is Festo's reliable and exceptionally strong air-preparation components range
• D Series valves are available in mini, midi and maxi sizes
• Items in the range are simple, streamlined and easy to assemble into modular units
• The range is corrosion-resistant against condensation in indoor applications (class CRC 2 to Festo standard FN 940070)
• Each unit complies with the EU Low-voltage Directive (electrical equipment within certain voltage limits, providing high levels of protection)

The Festo clevis foot with spherical bearing which size is 32 and used 2 moderate corrosion stress.

Ambient temperature is -40 to 150 °C
Product weight is 172 g
