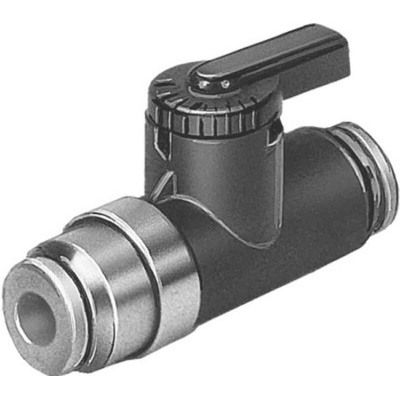

QH-QS-6, Festo 2/2 Bistable Pneumatic Manual Control Valve 1/2 Series, 6, 153484

Festo Pneumatic Manual Control Valve, Manual Actuation, 10 Bar Maximum Operating Pressure - QH-QS-6

Use this Festo pneumatic manual control valve to stop or start your air-pressure system reliably. It supports a 533L/min flow rate that suits low-powered vacuum systems. The ball valve design allows for smooth opening with minimal resistance. Despite its small 4mm nominal size, it reliably handles between 1 to 10 bar operating pressure. For easy operations, when you need to stop airflow, simply turn the handle 90° clockwise.

Features & Benefits

• Low 12.5 g weight won't put excess strain on your system
• Wide ambient temperature range between 0°C and +60°C for use in demanding settings
• Dimensions of 41.5 (L) x 6mm (D) for use in small pneumatic setups

Applications

• Agricultural equipment
• Assembly lines
• Automation systems
• Manufacturing facilities

What accessories go with this valve?

You can use this product with a push-in connector (121-6244) and a PUN-H series air hose (122-8470) to add manual control to your system.

What's a bistable 2/2 valve?

A 2/2 bistable valve like this one has two ports and two stable positions, in this case, open and closed. It's used in simple setups where you only need to turn air pressure on or off.

Datasheet - QH-QS-6

Catalogue - Ball Valves
