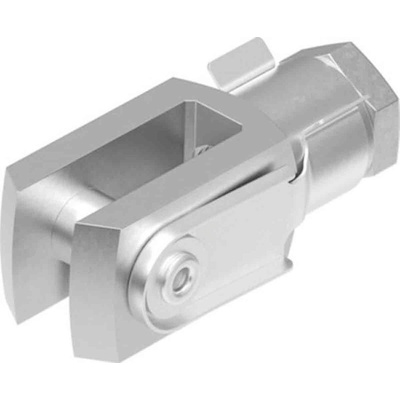

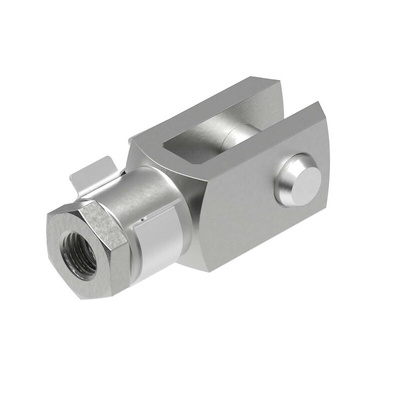

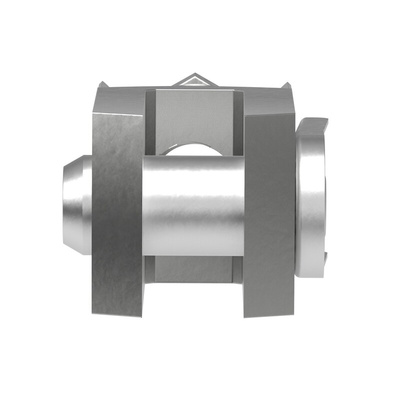

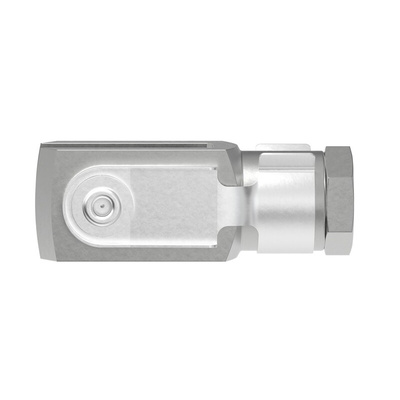

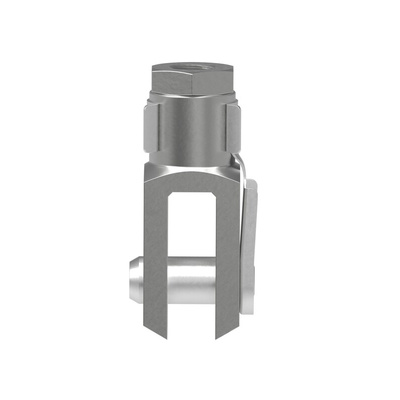

Festo Clevis SG-M10, To Fit 10mm Bore Size

Festo Clevis For Use With SG Series Cylinder, Galvanised Steel Material, 104g Weight - SG-M10

Keep your pneumatic cylinder steady while it's rotating using this rod clevis from Festo. Simply insert the threaded piston rod of your cylinder into the built-in M10 male thread of this unit and attach a load to its integrated mounting pin. The unit is suitable for use with loads travelling along a linear or non-linear path making it a versatile choice. It helps keep the force of the piston rod along the centreline of the cylinder for reliable operation. For easy assembly, this clevis is compatible with cylinders from the SG series.

• Light weight at 104g so it won't add bulk to the cylinder
• Galvanised steel housing is resistant to impacts and corrosion for durable performance
• Threaded connection comes with a nut for enhanced stability
• Wide operating temperature range between -40°C and +150°C to withstand demanding environments

Applications

• Marine industry
• Automotive engineering
• Medical and pharmaceutical industry
• Power stations

What type of cylinder can I use with this clevis?

It's designed for use with cylinders that have a compact bore size of 10mm so it'll fit easily in smaller machines.
