Festo Flange SNCB-100-R3, To Fit 100mm Bore Size

Festo Flange - SNCB Series - SNCB-100-R3

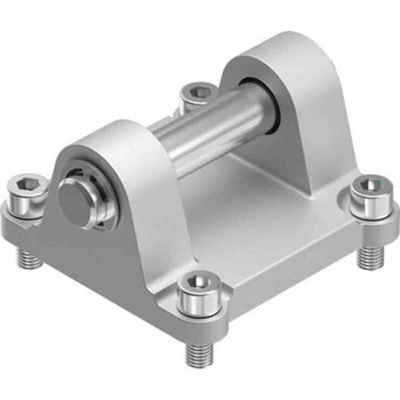

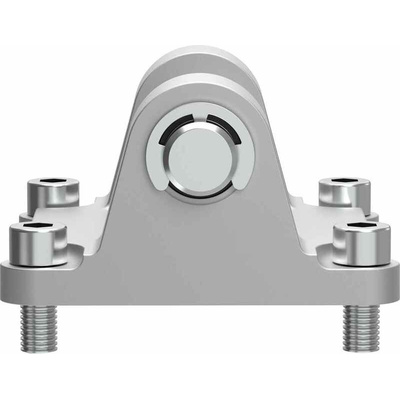

To prevent bearing failure due to side-loading, choose this swivel flange from Festo. It's designed for straight-line force-transfer applications and can be mounted on the cap end of the cylinder. Thanks to its wide operating temperature range of -40°C to +90°C, this unit is suitable for tough industrial settings. The aluminium die-cast housing ensures it's lightweight yet strong, making it a durable and versatile choice for your factory automation systems. It's commonly used to reduce compression stresses in a cylinder.

• Copper-free construction for corrosion-resistance
• Suitable for use with ISO (International Organisation for Standardisation) cylinders to ensure compatibility with modular systems
• Galvanised spring-steel lock for secure fastening

Application Information

• Assembly lines
• Construction equipment
• Food processing machinery

Is this unit corrosion-resistant?

This swivel flange is built to endure high levels of corrosion as it has a protective coating and screws made of a high-alloy steel material. It can withstand direct contact with common industrial substances, such as solvents and cleaning agents.

How should swivel flanges be mounted?

This flange should ideally be attached to a machine support member to avoid flexing or bending stress on the flange.
