VHER-P-H-B43E-B-G18, Festo Lever 4/3 Exhausted Pneumatic Manual Control Valve VHER Series, G 1/8, 1/8, 3488211

Festo Pneumatic Manual Control Valve, Swivel Flange, 21g Weight - VHER-P-H-B43E-B-G18

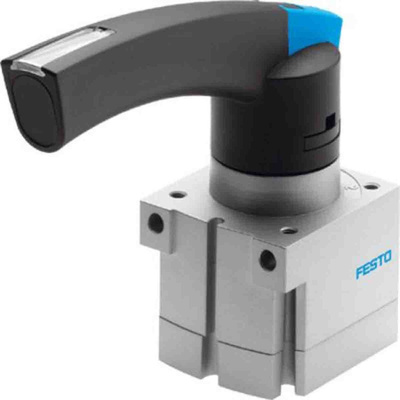

To get control of airflow at your fingertips, add this manual valve from Festo to your pneumatic setup. It features a hand lever and a rotary slide valve that can stop a double-acting cylinder along its stroke range. To lock the lever, remove the blue section and you'll find a hole, through which you can insert a padlock. This enables you to secure the lever in three positions, protecting personnel by ensuring it won't budge during maintenance.

Features & Benefits

• Handy slide-out inscription label for quick identification in busy setups
• 4 ports and 3 positions offer connection flexibility
• G1/8 port threads for simple installation
• Throttleable exhaust reduces backpressure and improves system performance
• Wide operating pressure range between 0 and 10 bar makes this a versatile choice

Applications

• Automotive manufacturing
• Assembly lines
• Construction sites

At what temperatures can I use this device?

This manual control valve has a wide operating temperature range between -20°C and 80°C, so it can withstand challenging conditions.

How do I mount it?

Installing this valve is simple. You can either mount it on a front panel with four mounting screws or use the two through holes on the front of the lever.
