QSK-6, Festo QSK Series Straight Tube-to-Tube Adaptor, Push In 6 mm to Push In 6 mm, Tube-to-Tube Connection Style, 153440, Адаптер

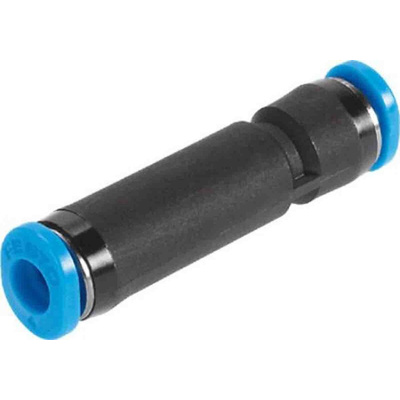

Festo Pneumatic Fitting, Straight Tube-to-Tube Adaptor, Push-In 6mm to Push-In 6mm - QSK-6

Connect two 6mm tubes quickly and easily with this straight tube-to-tube adaptor from Festo. It features push-in fittings that let you make the connection manually without any tools. The unit's operating temperature range of -10°C to +80°C makes it suitable for use in harsh industrial environments. On each end, you'll find a quick-release mechanism that includes a retaining ring made of POM, which combines strength with low friction. The accompanying retaining claw is made of corrosion-resistant high alloy steel, so you can count on it to withstand repeated use in harsh conditions.

• Body is made of PBT for reliable strength and durability
• Nitrile rubber tubing seals prevent leakage and support system efficiency

Applications

• Factory automation
• Construction equipment

How do I disconnect a push-in fitting?

To disconnect a push-in fitting, push the release ring back towards the housing. This disengages the retaining claw, allowing you to pull the tube out.

What's the purpose of a tube-to-tube fitting?

Tube-to-tube fittings are used to create the airtight network required by pneumatic systems. They're ideal for use in systems where you want to make quick and easy changes.

Datasheet - QSK-6
