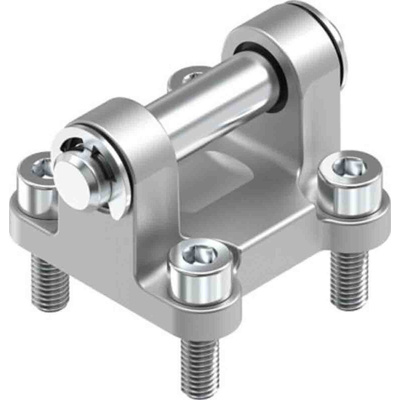

Festo Flange SNCB-40-R3, For Use With DSBC Series Standard Cylinder, To Fit 40mm Bore Size

Festo Flange, Swivel, To Fit 40mm Bore Size - SNCB-40-R3

Choose this swivel flange from Festo for the secure mounting of your pneumatic cylinders. Made of die-cast aluminium with a protective coating, this durable component is resistant to corrosion and impact, making it a good choice for harsh environments. It comes with four mounting holes to accommodate high-alloy steel screws that fasten the flange to the pneumatic cylinder for a stable, vibration-proof connection. To ensure smooth operation, there's a plastic bearing that reduces friction from moving parts. This unit is specifically designed for cylinders with a 40mm bore size.

• Broad operating temperature range between -40°C and +90°C for use in challenging settings
• Mounting pin for a secure hold on equipment
• Light weight of 151g means it's easy to handle and puts minimal pressure on equipment
• Free from copper and PTFE for reduced environmental impact

Applications

• High-pressure and low-pressure compressors
• Pumps
• Material-handling equipment

Is this flange flameproof?

Yes, the flange's aluminium body is non-combustible and won't catch alight in the event of a fire. This makes it a good choice for use in hazardous environments.
