GF-1/4, Festo GF Pneumatic Rotary Union, G 1/4 Female/Male

Festo Pneumatic Rotary Distributor With Single Air Feed, -0.95 to 10 Bar, 300rpm - GF-1/4

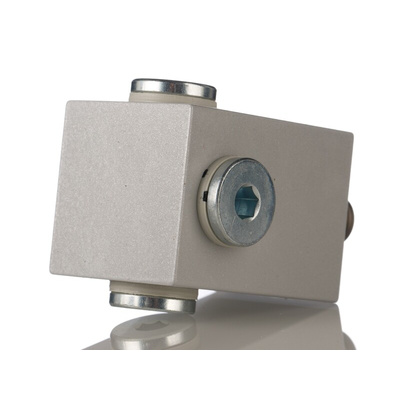

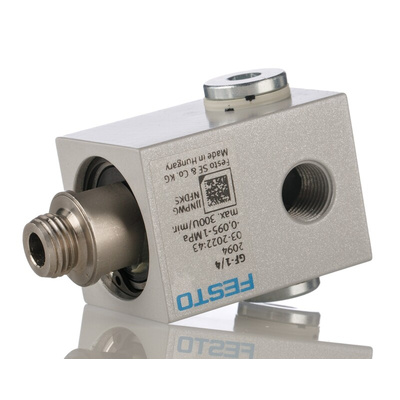

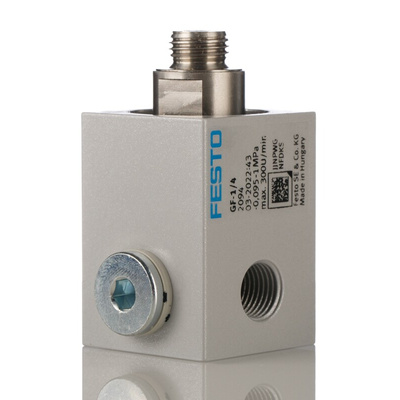

This rotary distributor from Festo is designed to allow for the movement of compressed air from a static part to moving parts in pneumatic equipment. It has one fixed feed port through which air passes from a supply unit and is distributed through four rotating outputs, allowing it to flow through the entire system. This unit can withstand pressures ranging from -0.95 to 10 bar, so it's suitable for use in low-pressure to medium-pressure environments. Its rotational speed of 300rpm (rotations per minute) makes it a good choice for high-speed applications.

• Wide operating temperature range of -10°C to +60°C for use in demanding environments
• Can be mounted in any position for flexibility in your pneumatic setup
• Nickel-plated brass housing material is resistant to impact and corrosion for a long lifespan
• One G1/4 male threaded connection and one G1/4 female threaded connection for simple, tool-free connections

Applications

• Robotics applications
• Agricultural equipment
• Conveyor systems
• Processing plants

How does this rotary distributor move in equipment?

This unit has internal double ball bearings that allow for smooth and efficient rotation.

Datasheet - GF-1/4

Catalogue - Rotary Distributors GF
