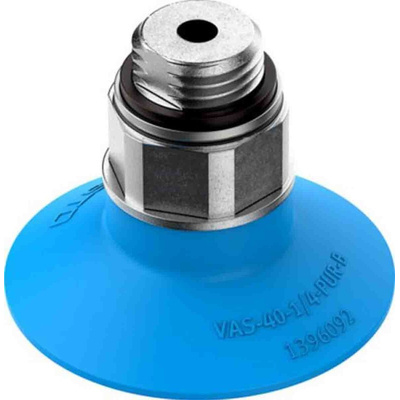

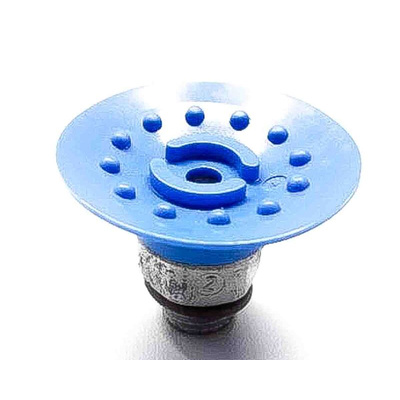

Festo 40mm PUR Suction Cup VAS-40-1/4-PUR-B

Festo Pneumatic Suction Cup, 60N, 40mm Diameter - VAS-40-1/4-PUR-B

Move heavy objects efficiently using this pneumatic suction cup from Festo. The pad is made from a polyurethane material that has exceptional tensile strength, which makes it capable of gripping uneven surfaces and withstanding pressure when objects are lifted. You can use this cup on large surfaces, as it has a wide grip of 40mm, and thanks to a maximum operating temperature of +60°C, it's suitable for use in hot industrial environments.

• Round flat shape for secure gripping on curved surfaces
• Lightweight at 26g, for easy handling
• Zinc die-casting threaded plug material offers excellent stability in pressurised situations

Applications

• Packaging industry
• Automotive sector
• Construction industry
• Storage facilities

Why is this suction cup also known as a vacuum cup?

A suction cup works in conjunction with a vacuum-generating medium. When activated, it creates a strong grip by withdrawing air from between the cup and the object to create a vacuum. This is why it's also referred to as a vacuum cup.

What's the holding force of this suction cup?

This cup has a high holding force of 60N, which is approximately equivalent to 6kg force.

Datasheet - VAS-40-1/4-PUR-B
