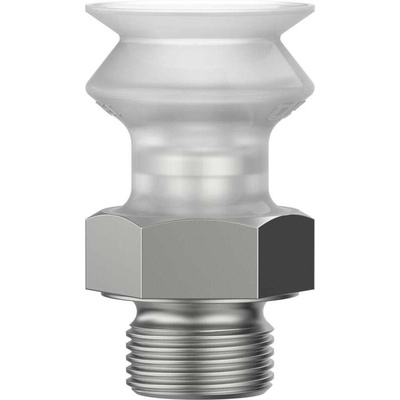

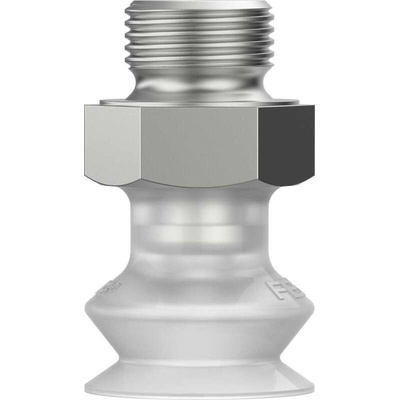

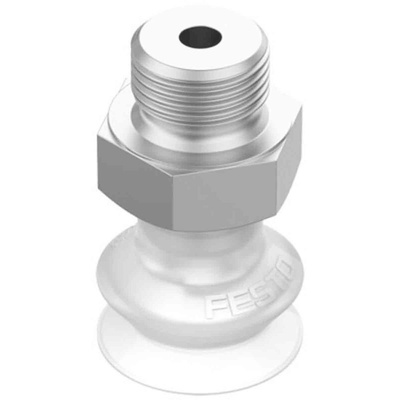

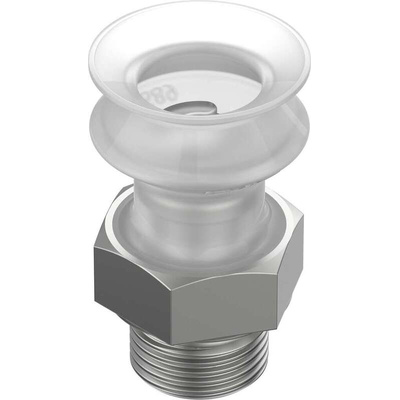

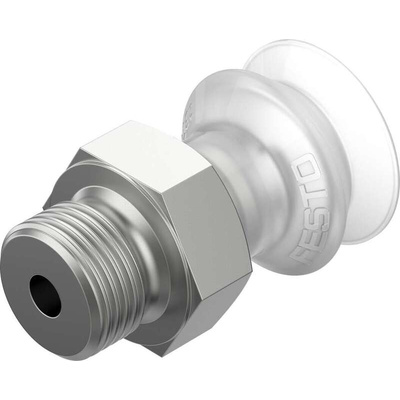

Festo 15mm Suction Cup VASB-15-1/8-SI-B

Festo Suction Cup, Silicon, 8.5N Holding Force - VASB-15-1/8-SI-B

To hold and move products by vacuum, opt for this suction cup from Festo. A G1/8 vacuum connection allows you to easily attach the unit to standard generators or connecting elements. The cup is made of VMQ, a silicon elastomer, meaning it can withstand moderate corrosion and is free from potentially harmful copper and PTFE. A wrought aluminium alloy threaded plug makes this a good choice for applications where resistance to abrasion is essential.

Features & Benefits

• Round, flat cup provides a reliable seal on both smooth and slightly curved surfaces
• Large suction cup diameter of 15mm provides good stability
• Weighs just 4g to minimise strain on your setup

Applications

• Packaging facilities
• Electronics manufacture
• Automotive industry

What temperatures can this unit function in?

This suction cup has an operating temperature range between -40˚C and +200˚C, so you can rest assured of a strong grip on objects even in harsh industrial environments.

Does this unit have a height compensator?

Yes. A 5.6mm height compensator means this product can be configured alongside other suction cups of different heights on the same frame.
