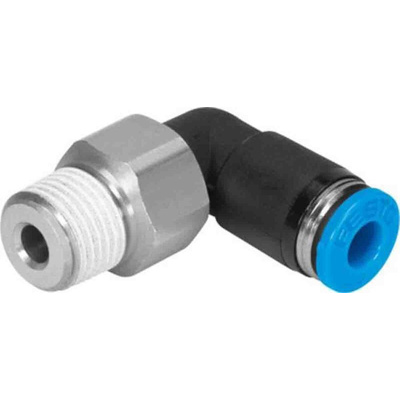

QSRL-1/8-6, Festo QSRL PBT Pneumatic Rotary Union, R 1/8 Male, Push In 6mm

Festo L-Shaped Rotatable Pneumatic Fitting, -0.95 to 6 Bar, 500rpm - QSRL-1/8-6

Ensure the precise distribution of compressed air in pneumatic equipment with this rotatable fitting from Festo. The unit features an R1/8 male thread leading to a 6mm push-in tube connector for reliable threaded-to-tube connections. Thanks to its internal ball bearing, this fitting can rotate up to 360° for full distribution of air in your pneumatic system. An external hexagon screw keeps the threaded connection stable as it turns at different angles. A maximum speed of 500 rotations per minute (rpm) makes this a good choice for use in high-speed applications.

• Broad operating temperature range of -10°C to +60°C for use in demanding environments
• Release ring for quick removal
• Polybutylene terephthalate (PBT) housing material is resistant to heat and chemicals for use in harsh settings
• L-shaped design for ease of installation in tight or awkward areas

Applications

• Hydraulic equipment
• Plumbing systems
• Assembly factories

How do I install this pneumatic fitting?

This unit uses a push-pull installation method. To mount it, simply push a hose into the fitting. The retaining claw will clamp down for a secure hold that will prevent leakage.

Datasheet - QSRL-1/8-6

Brochure - Tubing and Fittings Quick Reference

Catalogue - Self-Closing/Rotary Push-in Fittings QS
