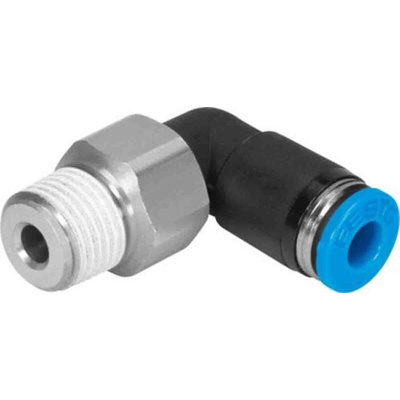

QSRL-1/8-4, Festo QSRL PBT Pneumatic Rotary Union, R 1/8 Male, Push In 4mm

Festo Pneumatic Rotary Union, 1.8mm Nominal Size, -0.95 to 14 Bar Operating Pressure - QSRL-1/8-4

Use this pneumatic rotary union from Festo to connect moving parts to your air-powered machinery. It achieves rotation speeds up to 500rpm, giving you effective performance with fast-paced equipment. As the component turns through 360°, it's suitable for just about any kind of rotating pneumatic hardware for versatility. The simple push-in design features a stainless steel retaining claw to quickly achieve a secure connection for fast assembly. Thanks to its nickel-plated brass housing, this rotary union is corrosion-resistant to maintain efficient airflow in damp conditions.

• Operating pressure range between -0.95 and 14 bar for handling high pressures
• Integrated NBR ring provides tight self-sealing connection with minimal leakage
• R1/8 thread port for wide compatibility with standard air-powered devices
• Works at temperatures between 0°C and +60°C to suit demanding industrial conditions

Applications

• Semiconductor manufacture
• Cleanrooms
• Packing plants
• Automotive industry

What size tubing can I use this pneumatic rotary union with?

This push-in L-fitting is suitable for tubing with a 4mm outer diameter.

Can I reuse this push-in fitting?

By carefully disconnecting it, you can use this L-fitting up to five times for convenience.
