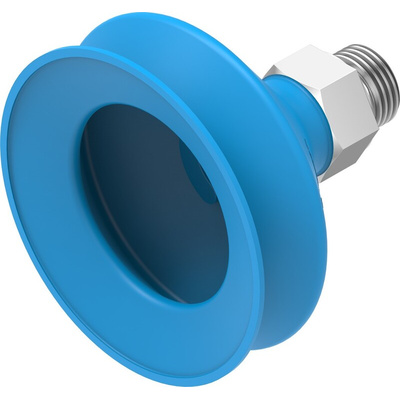

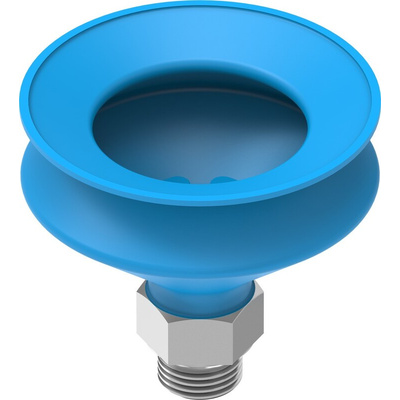

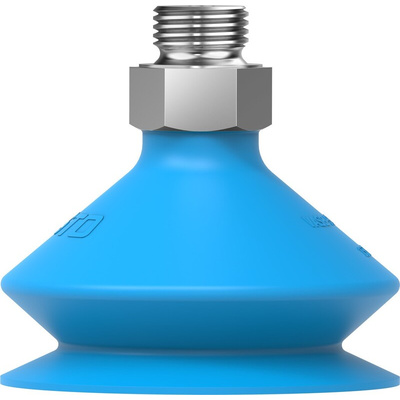

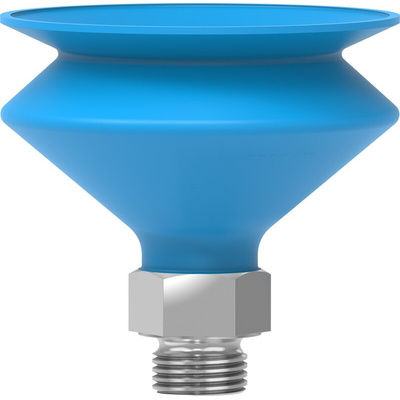

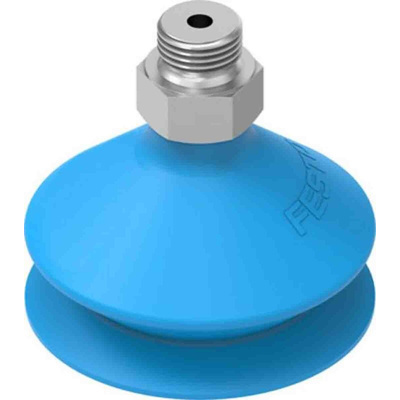

Festo 55mm PUR Suction Cup VASB-55-1/4-PUR-B, G 1/4

Festo Suction Cup, 55mm, 110N - VASB-55-1/4-PUR-B

This versatile suction cup gripper from Festo can be used with a variety of workpieces in a wide range of pneumatic applications. It offers a compact, low-maintenance solution for vacuum handling systems and features a G1/4 round connection to create the seal. With a pad diameter of 55mm and a suction height compensator of 20mm, this unit delivers a holding force of 110 N (newtons) for a powerful grip that you can rely upon.

• Connection port located on top of the unit for easy accessibility
• Wide operating temperature range from -20°C to +60°C for safe use in demanding industrial applications
• Polyurethane pad material is durable and doesn't need much maintenance

Applications

• Packaging systems
• Automotive manufacturing
• Metalworking processes

Is the grip of a suction cup secure?

A suction cup works by activating a vacuum generator when making contact with the workpiece. The generator sucks out the air from the cup's interior, which creates a vacuum inside. Because the air pressure outside the cup is now greater, it pushes against it to create a strong and secure hold.
