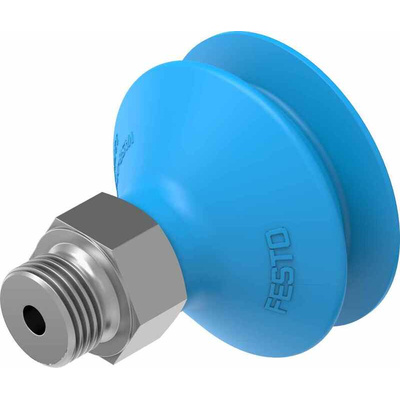

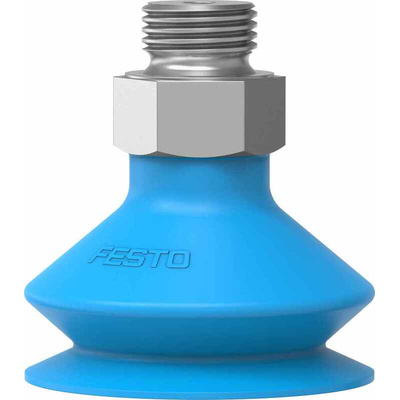

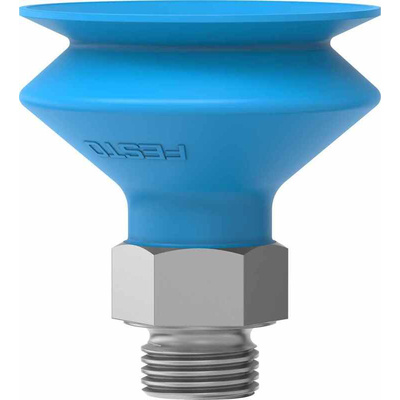

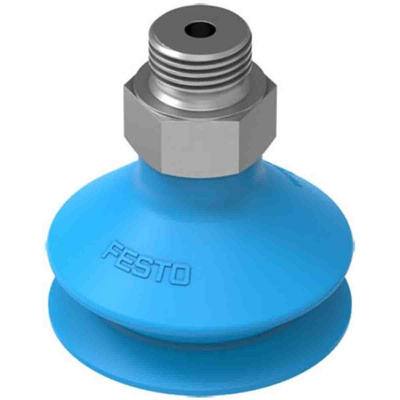

Festo 40mm Bellows PUR Suction Cup VASB-40-1/4-PUR-B, G 1/4

Festo Suction Cup, 40mm, 60N Holding Force - VASB-40-1/4-PUR-B

Use this suction cup from Festo to lift, grip and move objects without damaging them. The pad is made from soft PUR (polyurethane) for the gentle handling of fragile items. This plastic material is also durable, so it will cope with frequent and repetitive use. Formed in a bellows shape, the suction cup easily picks up objects with uneven, curved or slanted surfaces. It has a diameter of 40mm, an effective suction diameter of 34.4mm and a high volume of 11.11cm3, making it useful in a wide range of automated processes.

• Uses a standard-sized G 1/4 threaded connector for quick and secure installation
• Suitable for mounting in any position, giving you greater flexibility
• Wide operating temperature range of -20°C to +60°C for use in demanding industrial applications
• Easily identifiable blue cup colour
• Corrosion-resistant die-cast zinc connector material

Applications

• Robotics and automation
• Conveyor and packaging technology
• Automotive industry

What's the holding force of this bellows suction cup?

This cup has a holding force of 60N. This is the amount of force needed to move an object measured in Newtons.

Datasheet - VASB-40-1/4-PUR-B

Catalogue - VASB-40-1/4-PUR-B
