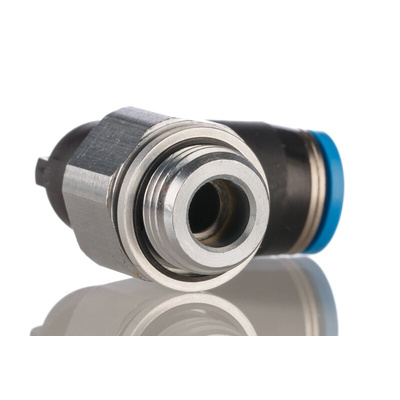

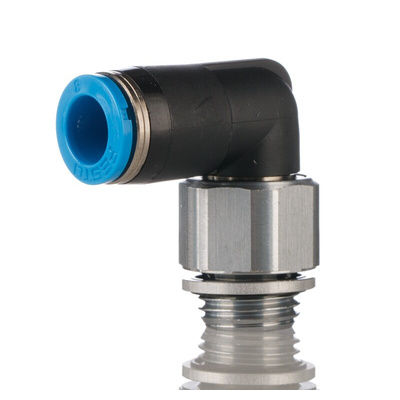

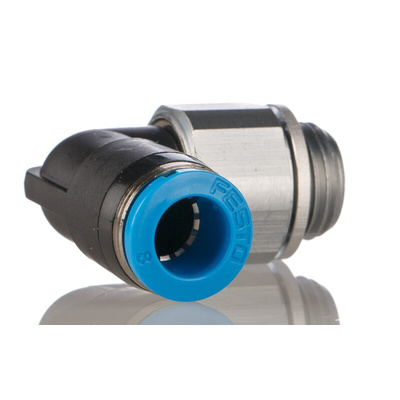

QSRL-G1/4-8, Festo QSRL PBT Pneumatic Rotary Union, G 1/4 Male, Push In 8mm

Festo Rotatable Pneumatic Fitting, -0.95 to 6 Bar, 400rpm - QSRL-G1/4-8

Use this rotatable fitting from Festo to connect a threaded port to a tube in pneumatic equipment. It contains an internal ball bearing that enables it to rotate 360° to effectively distribute air throughout the system. The threaded connector comes with a sealing ring that keeps it stable while rotating and prevents leaks, so you can be sure of efficient operation. Thanks to the simple push-in design, there's no need for adhesive or sealing tools, saving you time and energy during installation. A broad operating temperature range of -10°C to +60°C means you can use this fitting in demanding environments.

• Rotational speed of 400rpm (rotations per minute) for use in high-speed applications
• Polybutylene terephthalate (PBT) housing material for durability and resistance to wear
• Light weight of 31g to reduce strain on equipment
• Broad operating pressure range of -0.95 to 6 bar for use in low-pressure environments

Applications

• Printing presses
• Gas plants
• Pharmaceutical industry

How do I uninstall this pneumatic fitting?

This unit features a handy release ring. Simply press it down to disengage the retaining claw and release the fitting from the hose.
