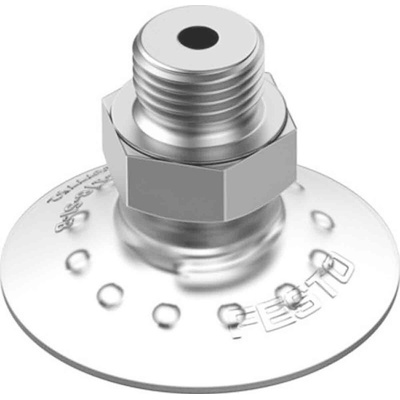

Festo 30mm Flat Silicon Suction Cup VAS-30-1/8-SI-B, G 1/8 in

Festo Pneumatic Suction Cup, 30mm Cup Diameter - VAS-30-1/8-SI-B

Use this suction cup from Festo to safely lift, hold or move objects in your automated system. It moulds securely to the workpiece you need to lift by creating a vacuum between itself and the surface of the item. A strong holding force of 31N (Newtons) gives a firm yet gentle grip that won't damage fragile objects. It's quick and easy to mount via a vacuum port on a pneumatic system and can be assembled in any position.

• Wrought-aluminium threaded plug for strength and corrosion resistance
• Lightweight at only 5g for ease of handling and installation
• Wide operating temperature range of -40°C to +200°C for use in demanding industrial settings
• Suction cup made from durable silicone that retains its shape and flexibility in extreme conditions

Applications

• Medical and pharmaceutical industries
• Robotics
• Industrial automation

What objects can I lift with this suction cup?

This suction cup has a round, flat shape, which makes it suitable for lifting or moving materials such as glass, metal sheets or cardboard. It's compact at just 30mm wide, so you can use it for small items as well as large ones.

Datasheet - VAS-30-1/8-SI-B

Catalogue - Suction Cups VAS/VASB
