Festo 15mm Bellows PUR Suction Cup VASB-15-1/8-PUR-B, 1/8 in

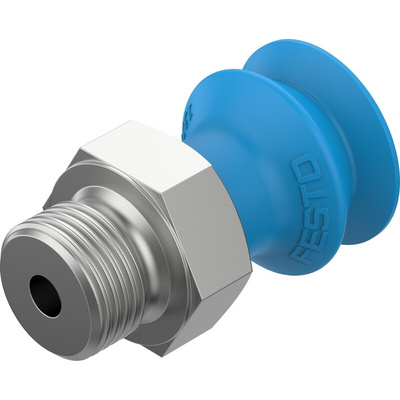

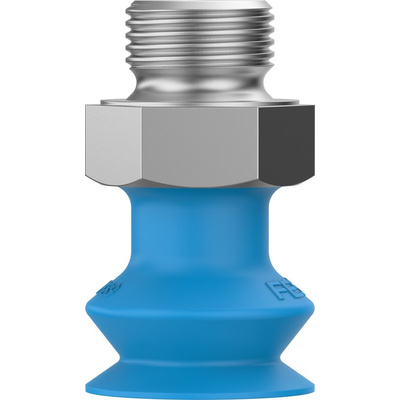

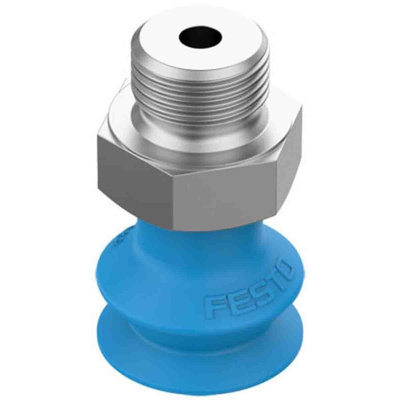

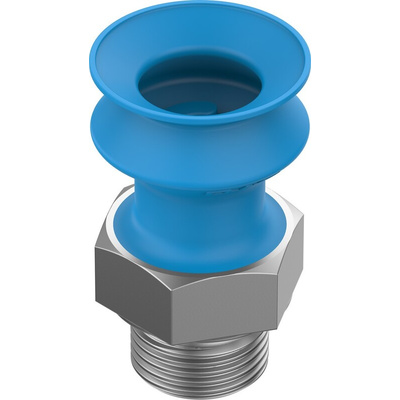

Festo Blue Suction Cup, 3mm Nominal Size, 15mm Diameter - VASB-15-1/8-PUR-B

Connect this suction cup to a vacuum device to safely move and carry items in your system. The cup has a pad made from robust PUR (polyurethane), so it can reliably hold even heavy objects. The wide 15mm surface provides ample contact with objects to guarantee a firm grip, and its low weight of 11g makes it easy to handle. You can apply it to uneven surfaces thanks to the round bellows, which give room for flexibility.

• Brass threaded plug material is highly resistant to corrosion
• Wide operating temperature range of between -20°C and +60°C for safe use in harsh environments
• 60 shore hardness for durability

Applications

• Product packaging
• Shipping
• Construction industry
• Logistics
• Printing presses

How do I connect this Festo suction cup to a vacuum device?

At the top of this suction cup, there's a knob with a hole. You can connect it to a vacuum port by passing a G1/8 thread through the hole.

What holding force does this suction cup have?

This device has a holding force of 8.5N, which gives it a firm and steady grip.

Datasheet - VASB-15-1/8-PUR-B

Catalogue - Suction Cups VAS/VASB
