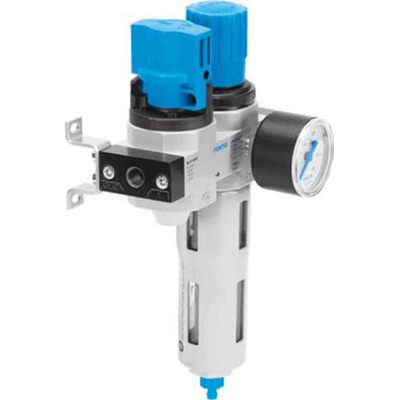

LFR-1/4-D-MINI-KC, Festo G 1/4 FRL Assembly, Manual Drain, 40μm Filtration Size - With Pressure Gauge

Festo G 1/4 FRL Manual Drain, 40 μm Filtration Size - D Series - LFR-1/4-D-MINI-KC

Maximise the life and efficiency of your air compressor systems with this compact air preparation unit from Festo. It combines a filter, regulator and lubricator (FRL) to effectively remove dust and vapour, maintain constant output pressure and inject oil to reduce friction. The unit can hold a condensate volume of 22 cubic centimetres and comes with a manually operated drain. Ensure the actuator is set in place using the rotary knob with its spring-operated locking device. A robust zinc die-cast construction means this is a durable and reliable choice.

• FRL manual drain with G 1/4 port connection thread
• Filtration size of 40 μm
• Manually operated rotary condensate drain
• Pressure regulation range of 0.5 bar to 12 bar
• Standard flow rate of 1150 L/min

Range Information

• D Series units from Festo are capable of handling all your air preparation needs
• Units are also available in automatic configurations
• Metal design units available in four body sizes – micro, mini, midi and maxi
• The unique modular system uses only one compression seal between units for leak-free assembly and mounting

The Festo service unit combination consisting of filter regulator, distributor module and lubricator of DB series has 7 bar is the maximum outlet pressure with pressure gauge. It has manual condensate drain and used rotary knob for actuator lock.

Ambient temperature -5 to 50 °C
Width size 88mm
