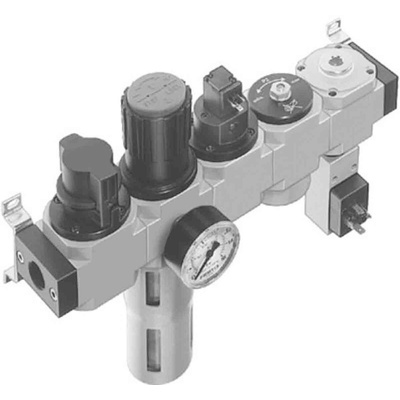

LFR-1/2-D-MIDI-KG, Festo G 1/2 FRL, Manual Drain, 40μm Filtration Size

Festo FRL, 16 Bar Maximum Operating Pressure, 1,740L/min Standard Nominal Flow Rate - LFR-1/2-D-MIDI-KG

Looking for an all-in-one solution that cleans, controls pressure and maintains your pneumatic system? This Festo FRL combines a filter, regulator and lubricator, so you can depend on it to handle more than its fair share of the workload. The device is used to remove contaminants from compressed air and gases before distributing it elsewhere in the system. To keep things running without a hitch, it comes with a lockable rotary knob to prevent tampering.

Features & Benefits

• Wide operating temperature range between -10°C and +60°C for use in harsh conditions
• Low weight of 3.4kg, so it's easy to handle during installation and won't strain the mounting surface
• Tough die-cast zinc housing withstands corrosion and impact for improved durability

Applications

• Automated industrial processes
• Railway industry
• Medical equipment

What's the purpose of the FRL's safety start-up valve?

The FRL's safety start-up valve gradually increases pressure and cuts off the supply when needed to limit the impact of harmful pressure spikes.

Which position should I mount this FRL?

You can mount it in any position. The unit's standard G1/2 ports are on hand to make installation quick and easy.

Datasheet - LFR-1/2-D-MIDI-KG
