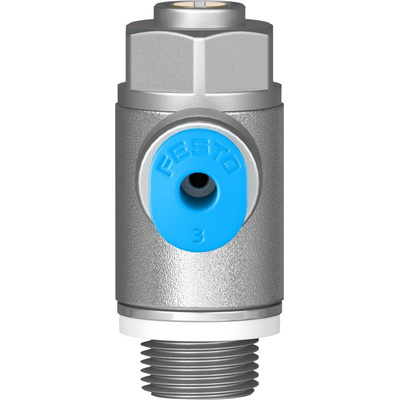

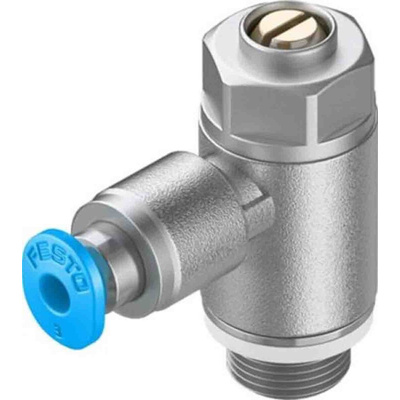

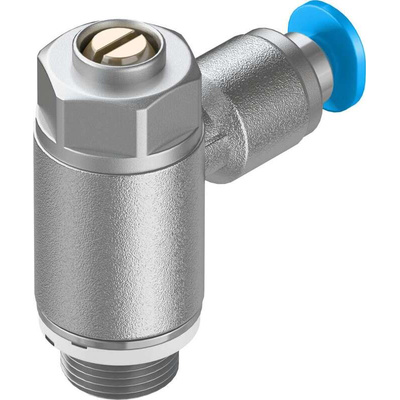

GRLA-1/8-QS-3-D, Festo GRLA Series Pressure Relief Valve

Festo Pressure Relief Valve, Screw Adjustment Element, 130L/min Standard Flow Rate - GRLA-1/8-QS-3-D

Keep your pneumatic machinery on an even keel with this Festo pressure relief valve. With its one-way flow, it releases air without taking more in, to keep your system pressure at the right level. The adjusting element is a simple slotted screw, so it's easy to fine-tune the unit to meet your needs. Sudden movements are no problem, thanks to the secure threaded mounting port. As the valve has a standard G1/8 pneumatic connection, it's widely compatible with commonly used parts.

Features & Benefits

• NBR seals eliminate the risk of oils, fuels and chemicals impacting the valve's airtightness
• Reaches flow rates of 130L/min, ensuring speedy venting
• Handles 0.2 to 10 bar, so it's safe for use with low-pressure setups
• Corrosion-resistant wrought aluminium alloy threaded plug for durability
• Lubricated operation is possible if you need to reduce friction

Applications

• Material handling
• Concrete processing
• Packaging industry

What operating temperature range can I use this valve in?

The device handles -10°C to +60°C temperatures, so it's ruggedly built and suitable for most systems.

What material is this fitting made of?

It's made of chromed die-cast zinc, which is reliably strong and resists torque well.
