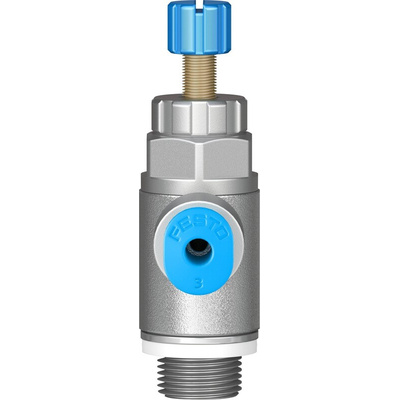

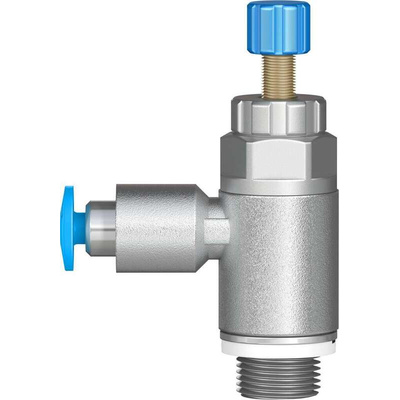

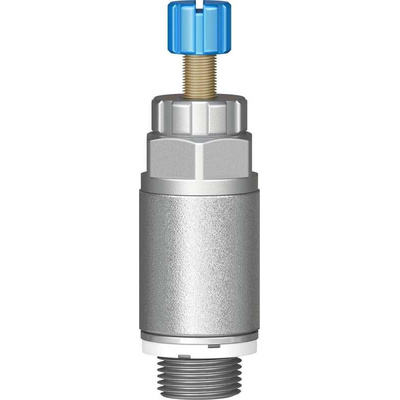

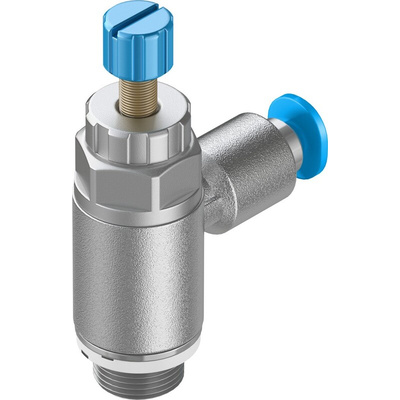

GRLA-1/8-QS-3-RS-D, Festo GRLA Series Pressure Relief Valve

Festo Pressure Relief Valve, 0.2 to 10 Bar Operating Pressure, 130L/min Standard Nominal Flow Rate - GRLA-1/8-QS-3-RS-D

Effectively control the compressed air forces in your pneumatic systems with this pressure relief valve from Festo. By managing pressure levels, it prevents equipment damage and prolonged downtimes. A threaded mounting port helps with quick and easy installation, while the integrated knurled screw lets you adjust pressures for different applications. Thanks to the wide operating pressure range between 0.2 and 10 bar, it's compatible with low-pressure and high-pressure operations. A light weight of only 23g means this unit puts minimal strain on your equipment.

Features & Benefits

• Nitrile rubber seals maintain pressure levels and support optimal function
• Broad operating temperature scope between -10°C and +60°C for safe industrial use
• Non-corrosive, high-alloy steel adjusting screw for a long service life in damp conditions

Applications

• Automatic doors
• Assembly and production lines
• Mechanical clamps
• Dental equipment
• Automotive industry

What's the best mounting orientation for a pressure relief valve?

It's best to install the valve vertically to ensure proper drainage and a securely sealed system.

Is this a bi-directional or one-way pressure relief valve?

It's a one-way valve for the flow control of exhaust air.
