MSB6-1/2-FRC1, Festo G 1/2 FRL, Manual Drain, 40μm Filtration Size - With Pressure Gauge

Festo Manual Drain, G 1/2, 40 μm Filtration Size - MSB6 Series - MSB6-1/2-FRC1:J5M1

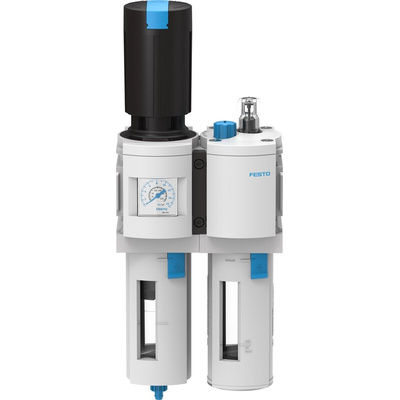

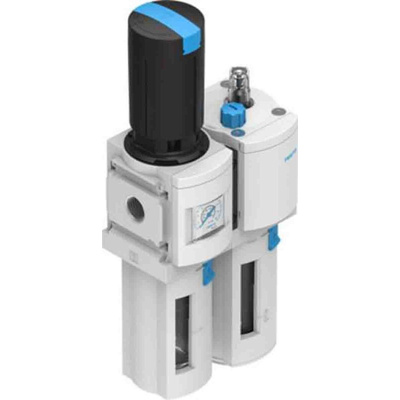

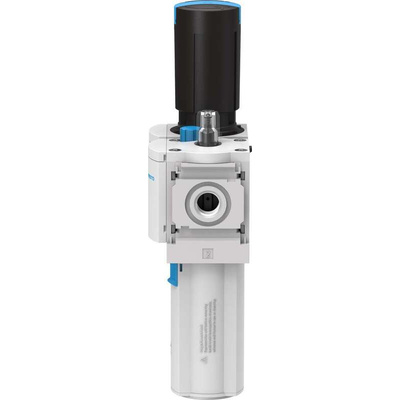

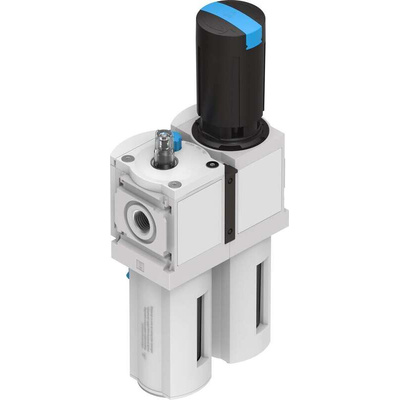

Use this filter, regulator and lubricator from Festo to assist in the uncomplicated preparation of compressed air. It features a reinforced membrane to enhance flow rate and extend the unit's service life. This membrane also reduces pressure drop and regulation failure. There's a built-in sensor to efficiently convert pressure to an electrical signal. The unit's compact design saves on space while maintaining high flow rates. Smart mount technology allows for a leak-free connection with other components from the Festo MS range. It's suitable to use in automated factory applications.

• Manual drain type
• Filtration size of 40 μm
• Port connection of G 1/2
• Operating pressure of 1.5 bar to 20 bar
• Rotary knob with integrated lock
• Assembly position of vertical +/- 5°
• Proportional standard mist lubricator design structure
• Controller function of output pressure constant with initial pressure compensation, secondary exhaust and return flow

Range Information

• The Festo MS series of service units offers individual configuration in a modular system, so you can create a compressed air preparation system to suit your needs
• With filters, regulators and lubricators available in four sizes, the MS range covers all possible flow-rate requirements
• All MS components have integrated safety valves

The Festo one-way flow control function for supply air with swivel joint has a threaded mounting type and can be assembled in any position. Here, threaded plug is made of brass material with a zinc die-casting for swivel fitting. Its pneumatic connection

Ambient temperature -10 to 60 °C
Slotted head screw adjusting element
