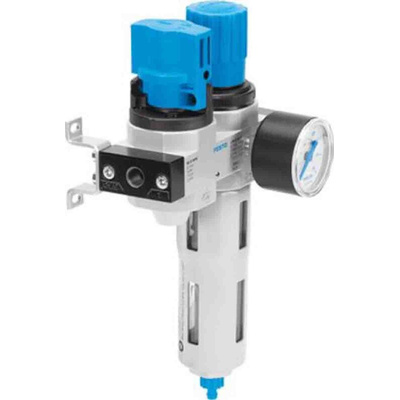

LFR-1/4-D-MINI-KC-A, Festo G 1/4 FRL, Automatic Drain, 40μm Filtration Size - With Pressure Gauge

Festo Automatic Drain, G 1/4, 40 μm Filtration Size - LFR Series - LFR-1/4-D-MINI-KC-A

Use this Festo filter regulator to clean and control the supply of compressed air to downstream pneumatic equipment. The modular component includes a lubricator to add controlled quantities of tool oil into the system, which is necessary to reduce the friction of moving parts. You can set a fixed operating pressure with the lockable rotary knob. An automatic drain eliminates the need for manual condensate release. Components like these with a filtration size of 40 microns are ideal for protecting most industrial pneumatic equipment from contaminants.

• One-way flow control function
• G 1/4 port connection
• Maximum condensate volume of 22 cm³
• Operating pressure of 2 bar to 12 bar
• Standard nominal flow rate of 1150 l/min
• Threaded mounting type for assembly in any position
• Slotted head screw adjusting element
• Ambient temperature range of -10°C to +60°C
• Mini size

Range Information

• Festo D series includes space-saving components that combine a filter and regulator in a single unit
• There are manual, semi-automatic or fully automatic condensate drain options
• All FLR D series units feature good particle separation and high flow rates for the optimal supply of compressed air
• The units have low hysteresis (lag) and perform consistently despite varying pressure

The Festo one-way flow control function for supply air with swivel joint has a threaded mounting type and can be assembled in any position. Here, threaded plug is made of brass material with a zinc die-casting for swivel fitting. Its pneumatic connection

Ambient temperature -10 to 60 °C
Slotted head screw adjusting element
