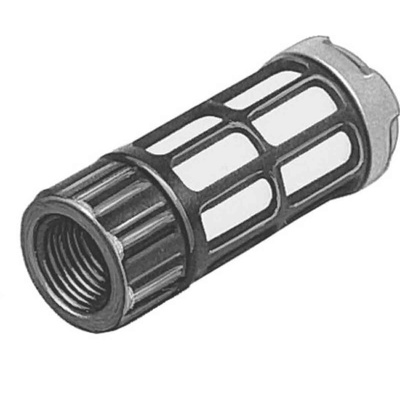

U-1/8-I, Festo U PE 10bar Pneumatic Silencer, Threaded, G 1/8 Male

Festo Pneumatic Silencer, 76.5dB Noise Level, 2,050L/min Flow Rate - U-1/8-I

Manage the noise of your compressed air system with this Festo pneumatic silencer. It keeps the sound pressure level below 76.5dB, roughly equivalent to a vacuum cleaner, to improve workplace comfort. The unit can be installed in any orientation, so it's a flexible option. By supporting flow rates up to 2,050L/min, it maintains the effectiveness of your exhaust ports and supports efficient pressure relief. As it's fitted with a male G1/8 threaded port, this silencer is widely compatible with standard pneumatic hardware.

• Durable PE housing protects against damage from impacts
• Suitable for operating pressures between 0 and 10 bar for compatibility with many common pneumatic applications
• Works with clean and lubricated air for versatility
• Wide working temperature range from -10°C to +70°C to withstand tough industrial settings

Applications

• Bottling plants
• Automated assembly lines
• Chemical processing
• Textile industry

Why should I use a silencer with my pneumatic equipment?

Silencers are mainly used to reduce the noise of your machinery's exhaust ports to levels that are safe for operators. Installing a pneumatic silencer also minimises the risk of system contamination.
