Festo R 1/8 Analogue Pressure Gauge 16bar Back Entry, MA-40-16-1/8-EN-DPA, 0bar min., 529046

Festo Pneumatic Pressure Gauge, 16 Bar - MA-40-16-1/8-EN-DPA

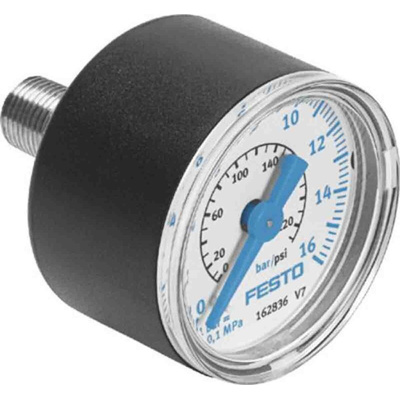

This analogue pressure gauge from Festo lets you accurately monitor positive pressures up to 16 bar or 230 psi. Use it to avoid spikes in pressure damaging your pneumatic system or causing downtime. It's built to the classic bourdon-tube design for simple and reliable operation. The thread is made from corrosion-resistant brass, with a tough ABS (acrylonitrile butadiene styrene) housing and a durable PS (polystyrene) screen. For versatile use, the unit is fitted with a standard R 1/8 threaded connection.

• Rear-side central connection enables space-efficient installation in a visible position
• Operating temperature range of -20°C to +60°C makes it suitable for use in a wide range of industrial environments
• IP (ingress protection) rating of 43 means it's protected against tools, small wires greater than 1 mm and light water sprays
• Contains only minimal levels of hazardous substances

Application Information

• Air-conditioning and heating systems
• Industrial compressors
• Medical equipment

Does my pressure gauge need to be calibrated?

By calibrating your pressure gauge, you can ensure it's operating accurately and within the manufacturer's specifications. Take advantage of the in-house calibration service from RS.
