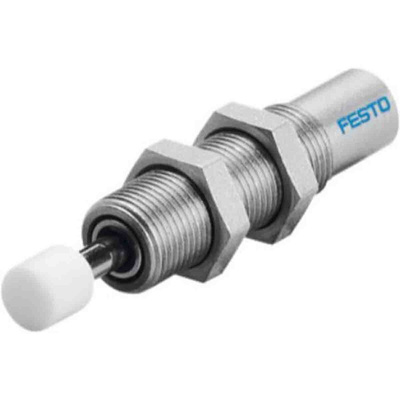

Festo Shock Absorber, YSR-8-8-C, 46mm Body Length

Festo Shock Absorber - YSR Series - YSR-8-8-C

The Festo hydraulic shock absorber protects your machine parts from damage by offering smooth, steady cushioning for pistons. It's suitable for use with rotary drives that use linear movement. The unit has a short stroke length of 8 mm and is self-adjusting to different impact positions. It has a rapidly rising cushioning force curve to minimise end shock and reduce deceleration time. Use the DAYH-4 reducing sleeve accessory (540-060) to replace the shock absorber with the next size down and improve cushioning when loads are low.

• Connection type of M12
• Maximum energy capacity per cycle of 3 Nm
• Maximum impact speed of 3 m/s
• Maximum stop force of 500 N
• Minimum operating temperature of -10°C
• Maximum operating temperature of +80°C
• Lock nut mounting type
• Can be assembled in any position
• Maintenance-free
• High-alloy steel housing and piston rod

Range Information

• The YSR-C series of Festo hydraulic shock absorbers includes universal screw-in types
• Compatible with DGPL, DGC and SLE linear drive units
• These components have been tested for use in indoor applications where condensation can occur

The Festo shock absorber has P cushioning with fixed metallic stop and assembled in any position. Its size is M14 with lock nut mounting. The stroke size is 5mm.

Used high alloy steel material
No position detection
