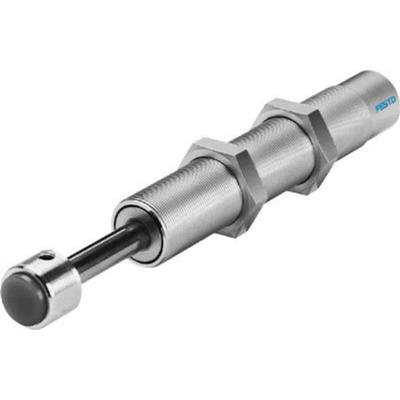

Festo Shock Absorber, YSR-16-20-C, 86mm Body Length

Festo Shock Absorber - YSR Series - YSR-16-20-C

This self-adjusting hydraulic shock absorber from Festo automatically adapts to absorb impact without exceeding the permissible energy limit. Thanks to the pressure valve's smart flow control, damping increases the more the piston rod pushes into the cylinder. The unit features a built-in pressure spring to return the piston rod back to its initial position and it can handle load speeds of up to 3 m/s. Its galvanised steel housing and high-alloy steel piston rod are corrosion-resistant, so it will hold up under tough conditions.

• 20 mm stroke length
• G1 connection port
• Maximum energy capacity per cycle of 30 Nm
• Cushioning length of 20 mm
• Overall length of 86 mm
• Operating temperature range of -10°C to +80°C
• Lock nut mounting type
• Can be assembled in any position

Range Information

• The Festo YSR series of shock absorbers has stroke lengths ranging from 4 mm to 60 mm and maximum energy absorption per stroke of 0.6 J to 380 J
• All units feature self-adjusting cushioning
• Whether diagonal or vertical, curved or straight, lever or disc, the Festo range of shock absorbers accounts for all types of cushioned movements

The Festo sleeve used wrought aluminium alloy material for sleeve and its pneumatic connection port 1 value is G1.

Product weight 80 g
