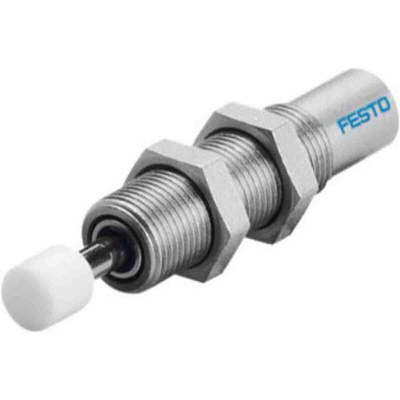

Festo Shock Absorber, YSR-10-10-C, 55mm Body Length, M14 Thread Size

Festo Pneumatic Shock Absorber, 10mm Stroke, 700N Maximum Stop Force - YSR-10-10-C

This Festo pneumatic shock absorber stops fast-moving pneumatic loads and prevents any chance of a rebound. This means it safeguards the rest of your system from damaging impacts. For effective, powerful absorption of force and energy, it features a single port for a single-action rod movement with a maximum impact speed of 3 metres per second. A galvanised steel housing protects the high-alloy steel piston rods, which resists corrosion and provides durability and longevity.

• Efficient stroke size of 10mm allows for small, fast movements
• Optimal performance at ambient temperatures ranging from -10˚C to +80˚C, for use in a range of industrial settings
• Powerful maximum stop force of 700N
• Mounts with a lock nut, so connections are secure

Applications

• Vacuum pump systems
• Light assembly operations
• Food packaging

Does this unit offer any cushioning?

Yes, this pneumatic shock absorber uses Festo's innovative self-adjusting cushioning. This system provides gentle cushioning without the need for manual intervention that can slow your systems down. The cushioning also reduces wear and tear on the internal components, making this a durable device that lasts.

Datasheet - YSR-10-10-C

Catalogue - Cushioning components
