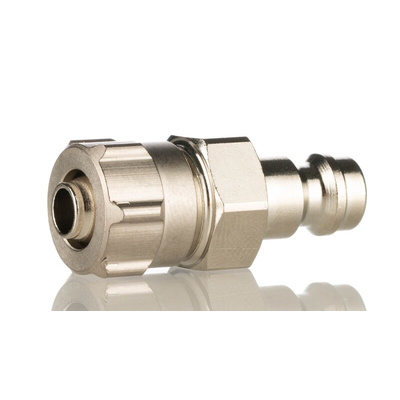

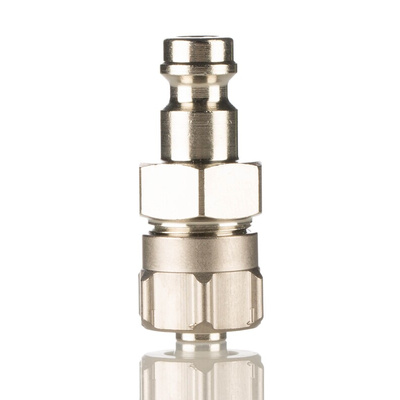

KS3-CK-6, Festo Pneumatic Quick Connect Coupling

Festo Pneumatic Quick-Connect Coupling, 0.95 to 12 Bar Operating Pressure, 378L/min Nominal Flow Rate - KS3-CK-6

Use this quick-connect coupling from Festo to attach pneumatic hoses to your devices. The fitting is ideal for changing lines quickly as all you do is simply push the fitting into place until you hear an audible click, which saves you time and effort. The unit's nickel-plated brass body is resistant to impact and corrosion, so it can withstand use in harsh conditions. As it has a wide operating pressure range of -0.95 to 12 bar, you can use it in both low-pressure and high-pressure applications.

• Compact nominal size of 4.9mm to reduce bulk on your pneumatic equipment
• Wide operating temperature range of -10°C to +60°C for use in demanding environments
• Light weight of 21g means it places minimal strain on your equipment
• Supports lubricated operation to reduce friction on your equipment's moving parts for a longer service life

Applications

• Air-powered machine tools
• Water-treatment plants
• Chemical laboratories

How do I remove this coupling?

This device is easy to remove. Simply push the release ring to unlock it, ensuring that it's fully exhausted before removal.
