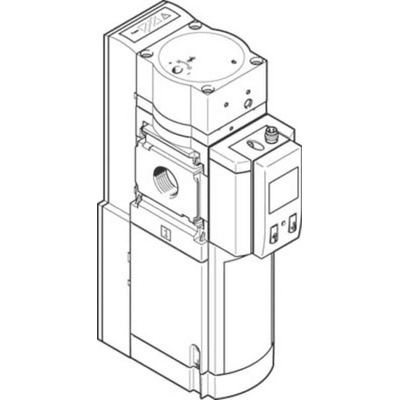

MS6-SV-1/2-E-10V24-AD1, Festo Pneumatic Soft Start Valve, 4300L/min, G 1/2 Female 10 bar

Festo Pneumatic Soft Start Valve, G 1/2 Female, 10 Bar - MS Series - MS6-SV-1/2-E-10V24-AD1

This soft-start and quick-exhaust valve from Festo is designed to build pressure gradually and reduce pressure quickly and safely in pneumatic piping systems. It slows down airflow to stop cylinders from spinning too fast at start-up, preventing internal and external damage to your machines. It also helps prevent unexpected pressurisation, ensuring a long service life for your systems.
The quick-exhaust function of the valve discharges air on the return stroke quickly, so you can improve production times at your factory. The valve is housed in a sturdy die-cast aluminium casing and uses soft-sealing NBR (nitrile butadiene rubber), so you can be confident of reliable and long-lasting performance.

• Flow rate of 4300 L/min for use with very high-flow applications
• Electrical actuation type for precision in control and positioning applications
• Ambient temperature range of 0°C to +50°C for use in a range of environmental conditions
• Operating pressure range of 3.5 bar to 10 bar makes it suitable for a range of applications
• IP (ingress protection) rating of 65 for defence against dust, condensation and low-pressure water jets

Datasheet - MS6-SV-1/2-E-10V24-AD1

Catalogue - MS6-SV-1/2-E-10V24-AD1
