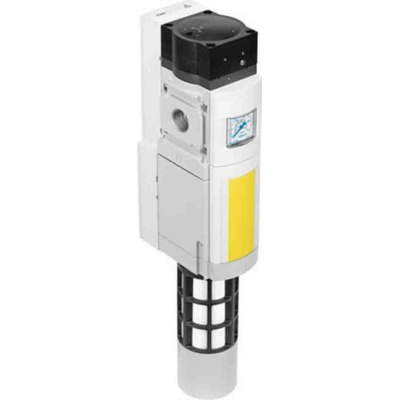

MS6-SV-1/2-E-10V24-SO-AG, Festo Pneumatic Soft Start Valve, 4300L/min, G 1/2 Female, 6mm Tube Size 10 bar, Клапан

2023168
Номер производителя: MS6-SV-1/2-E-10V24-SO-AGПроизводитель: Festo
Цена за шт.
441136.80 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Festo Pneumatic Soft-start Valve, G 1/2 Female - MS Series - MS6-SV-1/2-E-10V24-SO-AG

This Festo pneumatic soft-start valve lets you gradually increase flow downstream in your compressed air system. That means it prevents damage from unexpected start-ups or sudden releases of pressure. A solenoid actuator automatically regulates the internal valve position, and you can manually adjust the rate of release. This is ideal for maintaining a safe work environment when starting equipment after repair or installation. The valve also has an analogue pressure gauge so you can monitor your systems at a glance.

• Standard nominal flow rate of 4300 l/min
• Outlet tube size of 6 mm
• Operating pressure range of 3.5 bar to 10 bar
• Standard flow rate (for exhaust of 0-6 bar) of 9000 l/min
• G 1/2 in female supply inlet port
• Product weight of 2200 g
• Operating temperature range of -10°C to +50°C
• Aluminium die-cast housing
• NBR (nitrile rubber) seal resistant to oil, chemicals and abrasion
• Non-corrosive high-alloy steel piston rod

Range Information

• Festo's pneumatic soft-start valves prevent rapid or unexpected pressure build-up in pneumatic equipment
• Compliant with IP65 standards, they are completely protected from dust and other particles
• The valves are ideal for actuators and cylinders, particularly in industrial machinery and gas supply lines

The Festo soft-start/quick exhaust valve MS6-SV-1/2-E-10V24-SO-AG With pressure gauge, silencer open.

Series MS
Size 6
Grid dimension 62 mm
Safety function (* Exhausting, * Prevention of unexpected start-up (pressurisation))
Safety Integrity Level (SIL) (* Exhausting / SIL 3, * Prevention of unexpected start-up (pressurisation)/SIL 3)

Техническая спецификация
pdfDatasheet - MS6-SV-1/2-E-10V24-SO-AG
pdfCatalogue - MS6-SV-1/2-E-10V24-SO-AG
pdfInstructionSheet - MS6-SV-1/2-E-10V24-SO-AG
Давление - максимальное рабочее:
10 бар
Питающий входной порт:
G 1/2 Female
Производитель - серия:
MS
Рабочее давление - минимальное:
3.5бар
Размер выходной трубы:
6мм
Размер резьбы питающего входного порта:
1/2 in
Скорость потока:
4300L/min
Стандарт резьбы питающего входного порта:
G
Тип:
Exhaust Valve
Тип резьбы питающего входного порта:
Female
