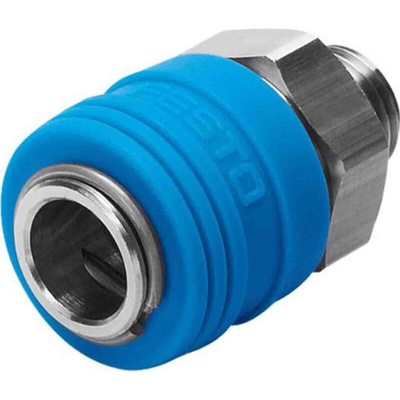

KD4-1/4-A-R, Festo Male Pneumatic Quick Connect Coupling, G 1/4 Threaded

Festo Pneumatic Quick Connect Coupling, Male, 765L/min Flow Rate - KD4-1/4-A-R

Conveniently link your air hoses to pneumatic equipment with this robust quick connect coupling from Festo. It has an integrated non-return valve that makes it a self-closing device to prevent leakages and optimise the performance of your systems. With its G1/4 thread, you can easily install it without using complex tools, saving time and effort. Thanks to nickel-plated brass housing, this unit can withstand impact and corrosion, so you can be sure of reliable long-term performance, even in harsh environments.

• Broad operating temperature range of -10°C to +80°C for use in challenging settings
• Flow rate of 765l/min for high-speed transmission of air and fluid
• Maximum operating pressure of 12 bar for heavy-duty applications
• Polypropylene release sleeve for easy insertion and removal of air hoses

Applications

• Pumps
• High-pressure and low-pressure compressors
• Material handling equipment

Is this coupling protected against fire?

This coupling's brass housing is non-combustible, which means it won't burn in a fire. Its release ring is also self-extinguishing and will stop burning in a short time. These features make this unit fire-safe and suitable for use in sensitive work areas.

Datasheet - KD4-1/4-A-R

Catalogue - Coupling sockets/plugs
