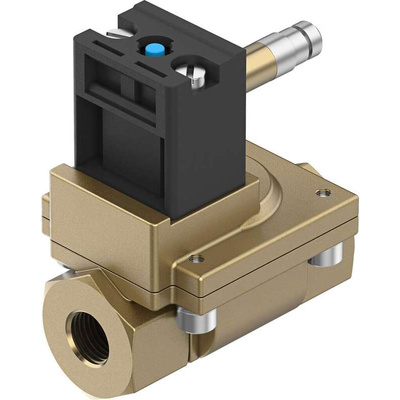

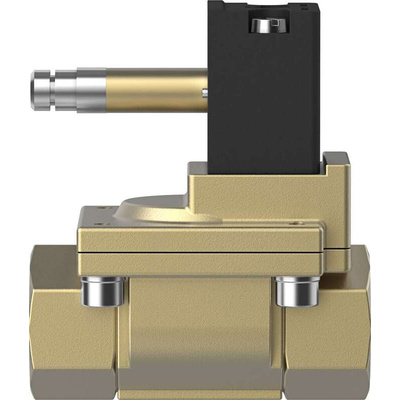

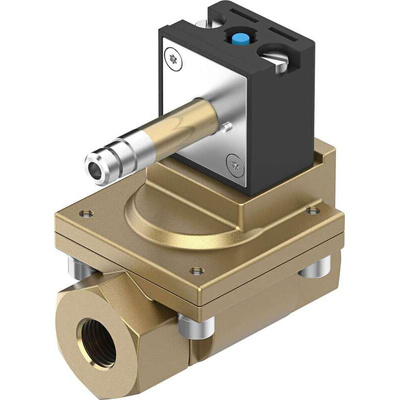

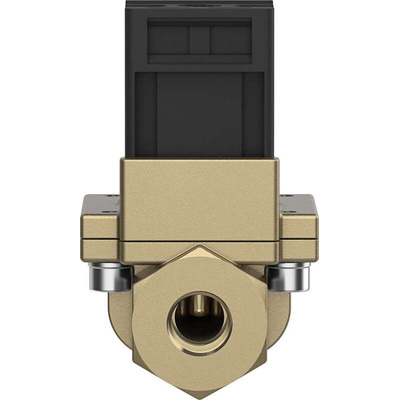

Festo Solenoid Valve MN1H-2-1/2-MS, 2 port(s) , NC, 110/230/24 V, 1/2in

Festo 2-port Solenoid Valve, Normally Closed, G 1/2, 24 V, 110 V, 230 V - MN1H-2-1/2-MS

If you need to regulate the flow of filtered air through a pneumatic system, choose this 2-port solenoid valve from Festo. It's a 'normally closed' valve, meaning airflow is blocked until you apply an electric current. You can use both DC (24 V) or AC (110/230 V) power, making this a flexible choice for a variety of settings. The valve features adjustable closing cushioning to regulate the seal's tightness. Brass housing and high-alloy stainless-steel screws mean this product is suitable for use in harsh environments. With a high standard nominal flow rate of 30,500 l/min, it can cope with large systems.

• G1/2 connection thread size
• 2/2 type valve
• Two ports
• Maximum closing time of 100 ms
• Maximum opening time of 30 ms
• Operating temperature range of -10°C to +60°C
• Maximum working pressure of 10 bar
• Pilot operation
• Orifice diameter of 13 mm

Range Information

• Festo's MN1H solenoid valve range features both ingle solenoid and 2/2-way valves
• G type port threads for compatibility with industry-standard components
• Available in six connection sizes, from G 1/4 to G 1-1/2

The Festo solenoid valve MN1H-2-1/2-MS With manual override, without solenoid coil or socket. Solenoid coil and socket should be ordered separately.

Design structure Diaphragm valve
Type of actuation electrical
Sealing principle soft
Assembly position Any
Mounting type Line installation

Note

Solenoid Coil is not included. Available Solenoid coil 202-3576 .

Datasheet - MN1H-2-1/2-MS

Catalogue - 2023188
