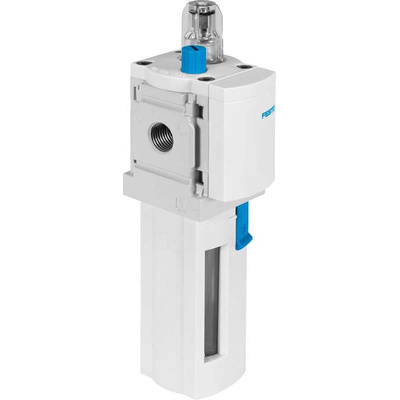

MS6-LOE-1/2-R, Festo G 1/2 7200L/min Pneumatic Air Lubricator, 1bar to 16 bar, MS Series

Festo Pneumatic Air Lubricator, 75cm³ Maximum Oil Capacity, 1 to 16 Bar Operating Pressure Range - MS6-LOE-1/2-R

For glitch-free flow in your pneumatic system, smooth the way with this air lubricator from Festo. It adds oil evenly to your medium to minimise friction and boost efficiency. As it supports flow rates up to 7,200L/min, you can trust the unit to keep up with fast-moving applications. Simple inline installation lets you install it without dismantling your entire setup. Don't worry about the lubricator running dry, as its 75cm³ oil capacity minimises the need for refills.

Features & Benefits

• Die-cast aluminium housing resists corrosion to keep compressed air contaminant-free
• Transparent bowl window for handy checks on the oil level
• Tolerates vertical mounting angles up to 5°, for flexible installation
• Regulation G1/2-thread connection to work with standard pneumatic hardware

Applications

• Mining equipment
• Metalworking
• Heavy engineering

What minimum flow rate does this lubricator need?

This unit starts releasing lubricant at a rate of 50L/min, so you can trust it to do its job even in low-flow conditions.

How do I know when I should refill this device?

The product comes with a low-oil marking line, so it's easy to see if it needs more lubricant.

Datasheet - MS6-LOE-1/2-R

Brochure - Simply Part of the Solution

Instruction Sheet - MS4/6-LOE Series
