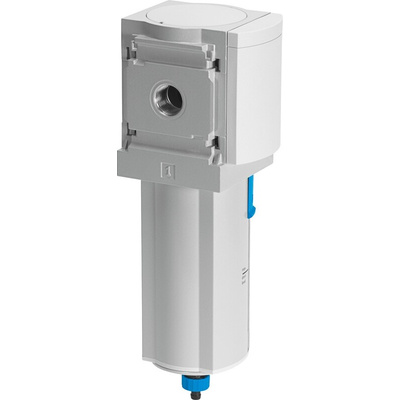

MS6-LWS-1/2-U-V, Festo 63.33 l/sec G 1/2 Water Separator, 6μm filtration, 2bar to 12 bar

Festo Water Separator, 38ml Maximum Condensate Volume, 2 to 12 Bar Operating Pressure Range - MS6-LWS-1/2-U-V

Drain stray particles from your setup's air supply with this water separator from Festo. With its 6μm filter, the unit catches minuscule droplets before they reach your hardware to minimise the risk of damage caused by corrosion. As it achieves 99% condensate separation, the device blocks the majority of unwanted substances, so you can be sure of reliable filtering. Connecting it to existing modules is a doddle thanks to its industry-standard G1/2 port. As the bowl drains automatically, the hassle of removing captured water is taken off your hands.

Features & Benefits

• Collects up to 38ml of condensate to handle high moisture levels
• Works with flow rates up to 3800L/min, for use with light-duty networks
• Metal bowl guard for impact resistance
• Fitted with NBR seals to cut the risk pressure drop
• Withstands operating temperatures between -10°C and +60°C to perform in challenging environments

Applications

• Industrial robotics
• Paper processing
• Textiles manufacturing
• Wastewater plants

Can I drain the separator's bowl manually?

Yes, you can step in and manually discharge the bowl's contents using the wrench-operated drain screw.

Does this product support tilted installation?

Yes, you can vertically tilt this separator by up to 5° during installation to line it up with your other components.

Datasheet - MS6-LWS-1/2-U-V

Brochure - Simply Part of the Solution

Instruction Sheet - MS4/6-LFR/LR(B)/LF(M)/LFX/LWS Series
